Komatsu

WS23S-1

Scraper

Gross Power
438.0 hp
Max Speed - Forward
32.4 mph
All scrapers

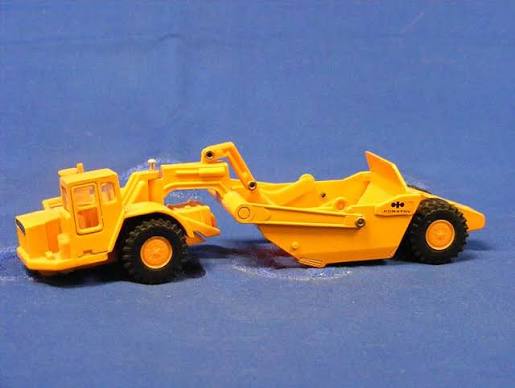

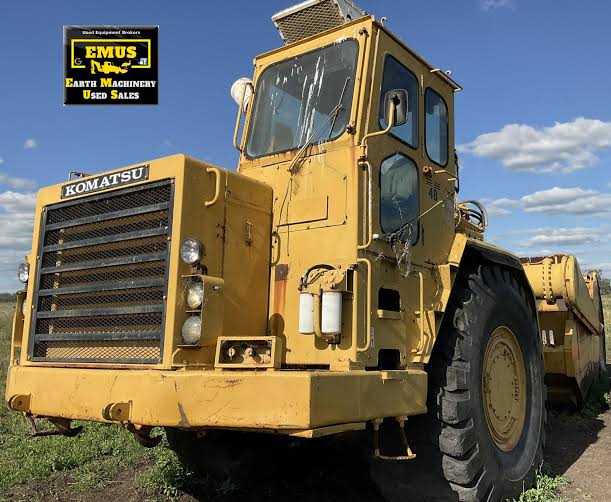

Komatsu WS23S-1 Scraper
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity224.6 gal
Tire Size33.5-33-32PR
Cooling System Fluid Capacity37.0 gal
Transmission Fluid Capacity18.5 gal
Engine Oil Fluid Capacity19.1 gal
Differential Fluid Capacity13.3 gal

Weights

Weights specifications
Total Operating - empty78,705 lb
Total Operating - Loaded153,662 lb
Front Axle - empty51,945 lb
Rear Axle - empty26,760 lb
Front Axel - loaded84,514 lb
Rear Axle - loaded69,148 lb

Dimensions

Dimensions specifications
Height - Top of Cab139 in
Wheelbase331 in
Overall Length530 in
Overall Width146 in
Overall Height187 in
Tractor Ground Clearance20 in

Transmission

Transmission specifications
Max Speed - Forward32.4 mph
Number of Forward Gears8
Number of Reverse Gears1
Transmission Typeplanetary gear

Bowl

Bowl specifications
Heaped Capacity31.40 yd³
Width of Cut133 in
Max Depth of Cut36 in
Rated Payload74,957 lb
Struck Capacity21.01 yd³

Tractor Engine

Tractor Engine specifications
Gross Power438.0 hp
Displacement1,150 in³
MakeKomatsu
Aspirationturbocharged
