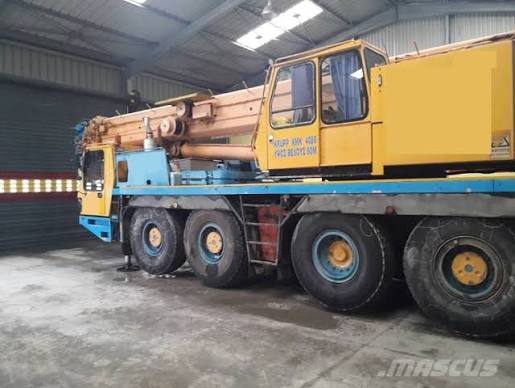

Krupp
KMK4080
- Gross Power
- 362.1 hp
- Max Lift Capacity
- 176,370 lb
- Max Speed - Forward
- 43.1 mph
- Transport Width
- 108 in
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 106,000 lb |
|---|---|
| Tire Size | 14.00R25 |
| Carrier Fuel Capacity | 100.0 gal |
| Operating Voltage | 24 V |
| Number of Axels | 4 |
| Alternator Supplied Amperage | 55 A |
Dimensions
| Transport Width | 108 in |
|---|---|
| Transport Height | 158 in |
| Transport Length | 522 in |
| Width w/ Outriggers Extended | 283 in |
| Upper Structure Tail Swing Radius | 138 in |
| Carrier Length | 419 in |
Transmission
| Max Speed - Forward | 43.1 mph |
|---|---|
| Max Speed - Reverse | 8.9 mph |
| Transmission Type | ZF 5-special-automatic 5 HP 600 |
| Number of Forward Gears | 5 |
| Number of Reverse Gears | 1 |
Boom
| Max Lift Capacity | 176,370 lb |
|---|---|
| Number of Sections | 3 |
| Max Height @ Max Raise Angle - no jib | 1,608 in |
| Min Height @ Max Raise Angle | 576 in |
| Max Elevating Angle | 84 ° |
| Swing Speed | 2 rpm |
| Min Working Radius | 120 in |
| Max Working Radius | 1,320 in |
CARRIER ENGINE
| Gross Power | 362.1 hp |
|---|---|
| Max Torque | 1,180 lb-ft |
| Torque Measured @ | 1,500 rpm |
| Make | Krupp |
| Power Measured @ | 2,100 rpm |
UPPER STRUCTURE ENGINE
| Make | Krupp |
|---|
