Krupp

KMK6160

All Terrain Crane

Gross Power
544.5 hp
Max Lift Capacity
352,740 lb
Max Speed - Forward
41.7 mph
Transport Width
119 in
All all terrain cranes

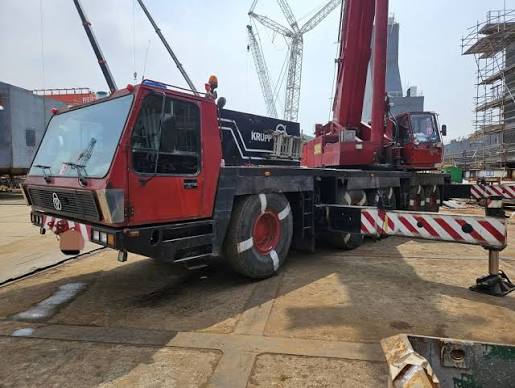

Krupp KMK6160 All Terrain Crane
1 / 5
Image 1 of 5
Image: machineryline.info

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight158,733 lb
Tire Size14.00 R 25
Number of Axels6

Dimensions

Dimensions specifications
Transport Width119 in
Transport Length703 in
Width w/ Outriggers Extended341 in
Upper Structure Tail Swing Radius209 in
Carrier Length598 in

Transmission

Transmission specifications
Max Speed - Forward41.7 mph
Transmission TypeAllison Getriebeautomatik
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Max Lift Capacity352,740 lb
Number of Sections5
Max Height @ Max Raise Angle - no jib2,363 in
Min Height @ Max Raise Angle619 in
Max Elevating Angle85 °

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power544.5 hp
Max Torque1,770 lb-ft
Torque Measured @1,000 rpm
MakeKrupp

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power285.7 hp
MakeKrupp
Max Torque944 lb-ft
Torque Measured @1,000 rpm
