Krupp

KMK6275

All Terrain Crane

Gross Power
543.2 hp
Max Lift Capacity
550,000 lb
Max Speed - Forward
42.0 mph
Transport Width
117 in
All all terrain cranes

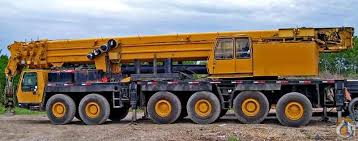

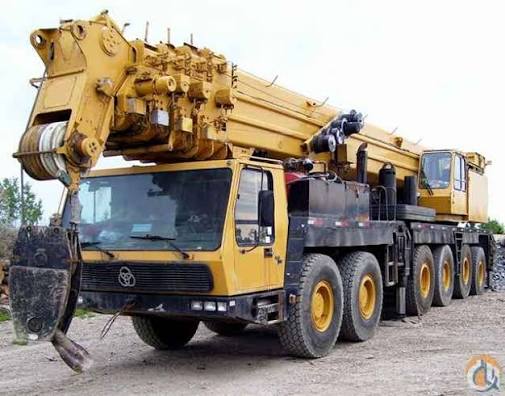

Krupp KMK6275 All Terrain Crane
1 / 5
Image 1 of 5
Image: indiamart.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight159,000 lb
Tire Size16.00R25/20.5R25
Carrier Fuel Capacity125.0 gal
Operating Voltage24 V
Number of Axels6
Upper Structure Fuel Capacity75.0 gal

Dimensions

Dimensions specifications
Transport Width117 in
Transport Height145 in
Transport Length656 in
Width w/ Outriggers Extended339 in
Upper Structure Tail Swing Radius209 in
Carrier Length612 in

Transmission

Transmission specifications
Max Speed - Forward42.0 mph
Max Speed - Reverse9.0 mph
Transmission TypeAllison 5-speed automatic
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Max Lift Capacity550,000 lb
Number of Sections5
Max Height @ Max Raise Angle - no jib2,088 in
Min Height @ Max Raise Angle588 in
Max Elevating Angle85 °
Swing Speed2 rpm
Min Working Radius108 in
Max Working Radius1,860 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power543.2 hp
Max Torque811 lb-ft
Torque Measured @1,500 rpm
MakeKrupp
Power Measured @2,100 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power292.4 hp
MakeKrupp
Max Torque904 lb-ft
Torque Measured @1,600 rpm
Power Measured @2,100 rpm
