Kubota
Komatsu
PC20R-8

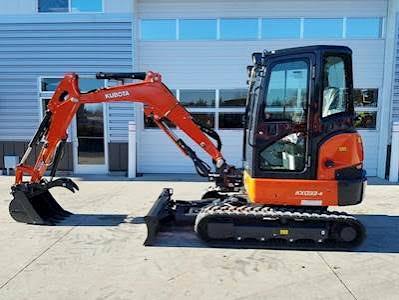

Mini Excavator
47 specifications
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 7,616 lb |
|---|---|
| Fuel Capacity | 12.4 gal |
| Hydraulic Pump Flow Capacity | 16.2 gal/min |
| Hydraulic System Fluid Capacity | 11.8 gal |
Engine
| Engine Model | D1703M-DI-E4 |
|---|---|
| Displacement | 100 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 24.8 hp |
| Net Power | 23.2 hp |
| Engine Make | Kubota |
| Fuel Type | Diesel |
| Engine Type | Water cooled |
| Model Name | KX033-4HGAX |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Length of Track on Ground | 187 in |
| Height | 98 in |
| Width | 61 in |
| Shoe width | 12 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Max Travel Speed | 2.9 mph |
Boom/Stick Excavator Option 1
| Max Digging Depth | 127 in |
|---|---|
| Max Vertical Wall Digging Depth | 89 in |
| Max.Dumping Height | 139 in |
| Max Digging Height | 197 in |
| Mximum dig radius | 206 in |
| Boom offset-Left | 18 in |
| Boom offset-Right | 17 in |
Drive System
| Max. traction force-Low speed | 6,091 lb |
|---|---|
| Crawler length | 83 in |
| Tumbler distance | 66 in |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Blades
| Blade Width | 61 in |
|---|---|
| Blade Height | 14 in |
| Maximum Drop below ground | 16 in |
| Maximum Lift Above Ground | 15 in |
| Blade lift-Left | 16 in |
| Blade lift-Upper | 15 in |
