BOOMER 24
Tractor
33 specifications
1 / 5

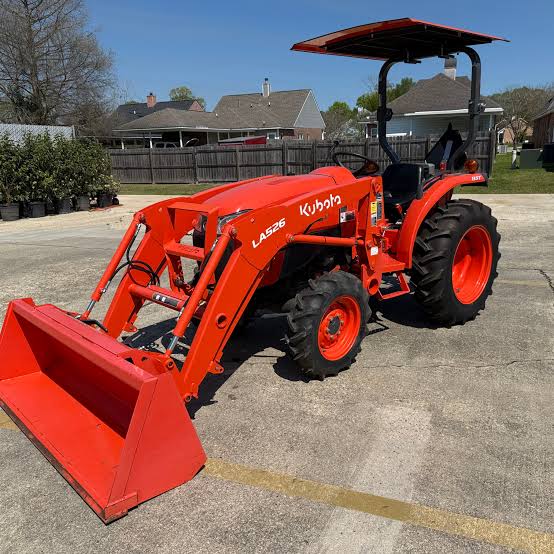

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 2,767 lb |
|---|---|
| Fuel Capacity | 11.1 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 1,433 lb |
| 3 Point Hitch Type | Category 1 |
| Turning Radius | 100 in |
| Alternator Supplied Amperage | 40 A |
| Operating Voltage | 12 V |
| Tire Size Front - 2wd / 4wd | 7.2-16 |
| Cooling System Fluid Capacity | 1.6 gal |
| Lift Configuration | Position control |
Engine
| Engine Model | D1803-CR-E4 |
|---|---|
| Displacement | 111 in³ |
| Gross Power | 37.5 hp |
| Net Power | 36.3 hp |
| Number of Cylinders | 3 |
| Max Torque | 85 lb-ft |
| Engine Make | KUBOTA |
| PTO Power | 32.1 hp |
| Bore | 4 in |
| Stroke | 4 in |
| Engine Type | Direct injection Vertical Water-Cooled 4 cycle diesel |
| Rated Speed | 2,700 rpm |
Hydraulic System
| Pump Flow Capacity | 6.3 gal/min |
|---|---|
| system pressure | 2,349 psi |
| Implement Pump Flow PS | 3.8 gal/min |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 93 in |
| Wheelbase | 64 in |
| Overall Length | 108 in |
| Width Outside Frame | 55 in |
Transmission
| Max Speed | 13.2 mph |
|---|---|
| Number of Forward Gears | 8 |
| Transmission Type | Manual Transmission -Gear shift with synchronized shuttle |
| Number of Reverse Gears | 8 |
| Brakes | Mechanical wet disc type |
| Steering | Integral type power steering |
| Clutch, wet/dry | Dry type dual stage |
Tires & Wheels
| Rear Tires Size | 11.2-24 |
|---|
