Kubota

R530

Wheel Loader

Operating Weight
9,304 lb
Bucket Capacity - heaped
1.20 yd³
Gross Power
51.0 hp
Net Power
47.9 hp
All wheel loaders

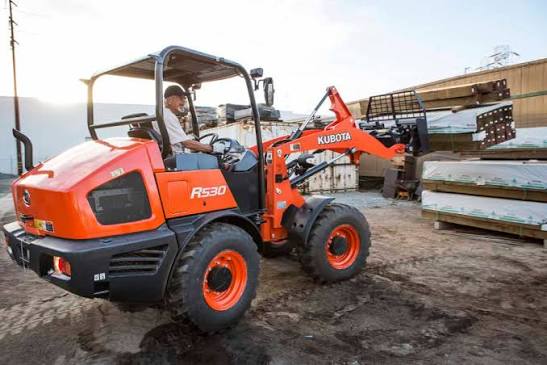

Kubota R530 Wheel Loader
1 / 5
Image 1 of 5
Image: robertskubota.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,304 lb
Tire Size365 / 70 R18
Static Tipping Weight6,041 lb
Rear Axle Oscillation8 °
Rated Bucket Capacity0.80 yd³
Traction force6,542 lb

Engine

Engine specifications
Engine ModelV2607-CR-E4
Displacement160 in³
Power Measured @2,400 rpm
Gross Power51.0 hp
Net Power47.9 hp
Number of Cylinders4
AspirationWater-cooled
Engine MakeKUBOTA
MakeKubota
Emissions CertificationTier4 Final

Weights

Weights specifications
Operating Weight9,303 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.3 gal/min
Raise Time6.3 s
Lower Time4.0 s

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab97 in
Wheelbase77 in
Width Over Tires69 in
Reach at Max Lift and Dump33 in
Length with Bucket on Ground209 in
Hinge Pin - Max Height127 in
Articulation Angle40 °
Tread53 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph
Max Speed - Reverse12.5 mph
Transmission TypeHydrostatic transmission

Fluid Capacities

Fluid Capacities specifications
Fuel Tank18.5 gal
Hydraulic system14.6 gal
Hydraulic oil tank10.4 gal

Bucket

Bucket specifications
Bucket Capacity - heaped1.20 yd³
Dump Clearance at Max Raise96 in
Breakout Force7,756 lb

General Specifications

General Specifications specifications
Operating Weight9,303 (4,220) — Starting 2019 Model Year
Bucket Capacity0.8 (0.61) — Starting 2019 Model Year
Engine typeKubota V2607 — Starting 2019 Model Year
Engine Power51 net (38) — Starting 2019 Model Year
Max Dump Height8 (2.45) — Starting 2019 Model Year

Electrical System

Electrical System specifications
Battery12 / 95 (V / Ah)
Starter12 / 2 (V / kW)
