Kubota

U25

Mini Excavator

Operating Weight
5,625 lb
Max Digging Depth
110 in
Gross Power
20.9 hp
Net Power
20.9 hp
All mini excavators

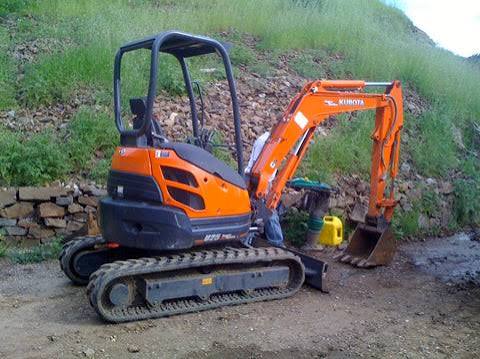

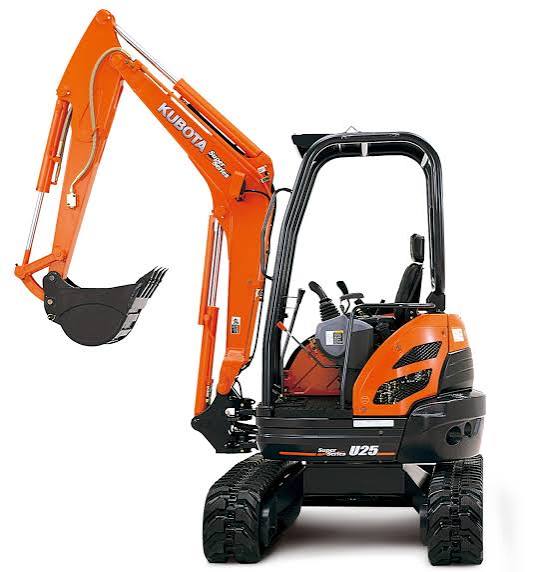

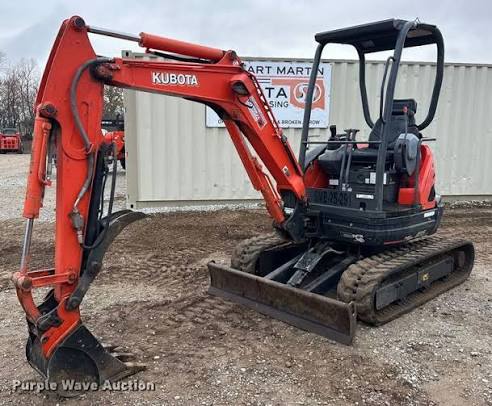

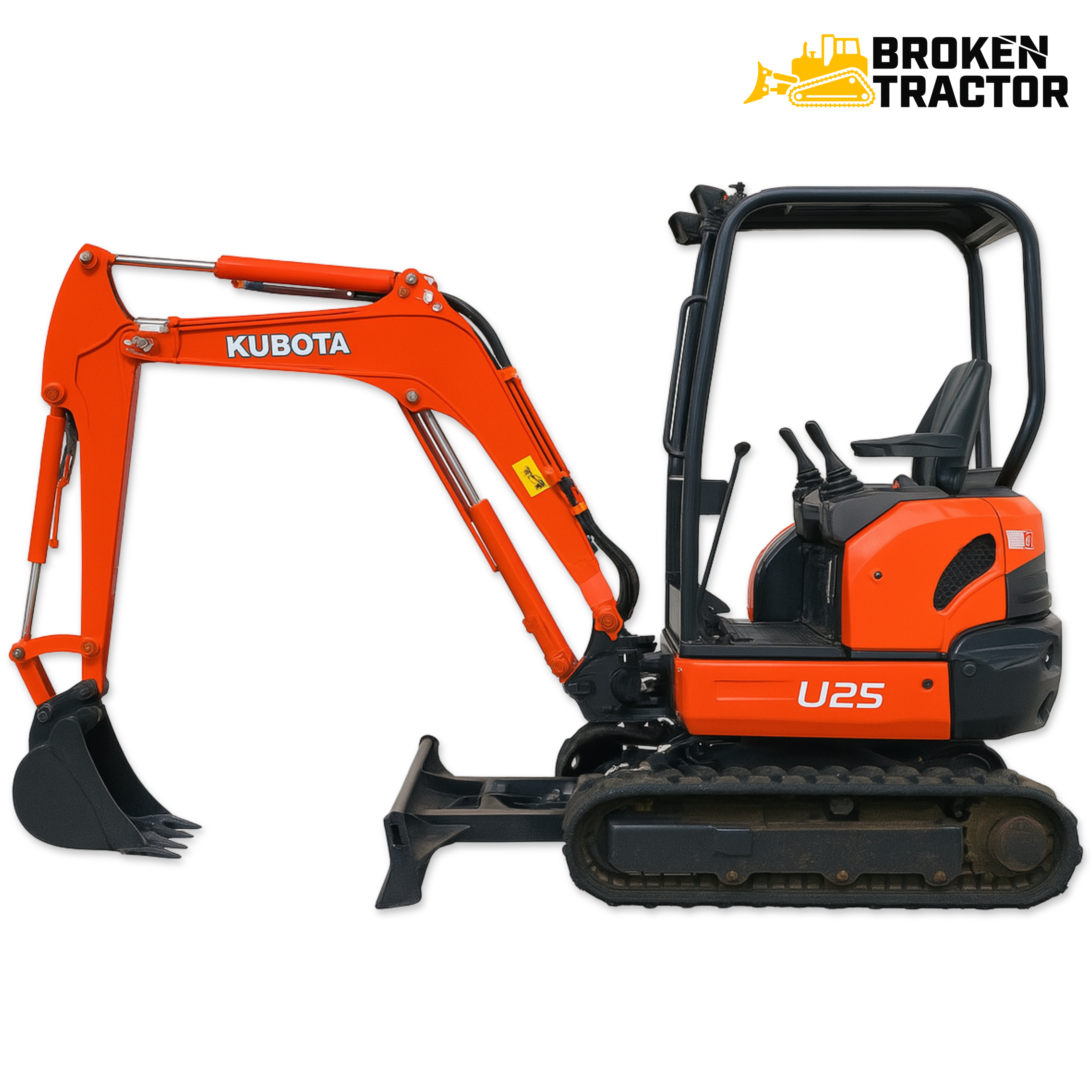

Kubota U25 Mini Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,625 lb
Fuel Capacity7.4 gal
Engine Oil Capacity1.2 gal
Cooling System Fluid Capacity1.0 gal
Travel speed, high range2.8 mph
Travel speed, low range1.6 mph
Auxiliary hydraulic flow12.7 gal/min

Engine

Engine specifications
Power Measured @2,400 rpm
Gross Power20.9 hp
Net Power20.9 hp
Number of Cylinders3
Aspirationliquid-cooled overhead valve diesel engine
Engine MakeKubota
Model NameU25-HGS

Dimensions

Dimensions specifications
Overall Length141 in
Tail Swing Radius30 in
Width to Outside of Tracks60 in
Crawler length64 in

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Max Travel Speed2.9 mph
Shoe Size12 in
Drawbar Pull6,745 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth110 in
Max Reach Along Ground184 in
Max Vertical Wall Digging Depth102 in
Max.Dumping Height127 in
Max Digging Height179 in
Mximum dig radius188 in

Boom

Boom specifications
Boom swing left75 °
Boom swing right55 °

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Blades

Blades specifications
Blade Lift Height14 in
Maximum Drop below ground13 in
Overall Height93 in
