Kubota

U27-4

Mini Excavator

Operating Weight
5,625 lb
Gross Power
20.8 hp
Net Power
20.0 hp
All mini excavators

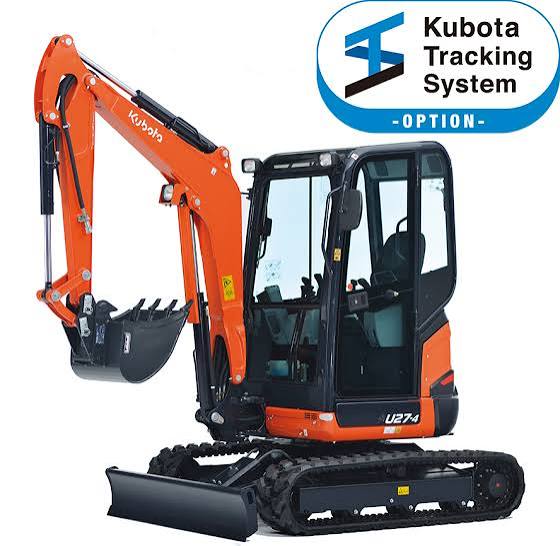

Kubota U27-4 Mini Excavator
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,625 lb
Fuel Capacity8.8 gal
Hydraulic Pump Flow Capacity5.9 gal/min
Hydraulic System Fluid Capacity9.8 gal
Travel speed, high range2.7 mph
Travel speed, low range1.7 mph
Auxiliary hydraulic flow12.7 gal/min

Engine

Engine specifications
Engine ModelD1105-BH
Displacement4,180 in³
Power Measured @2,400 rpm
Gross Power20.8 hp
Net Power20.0 hp
Engine MakeKubota
Model NameU27-4

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab95 in
Overall Length162 in
Overall Width59 in
Tail Swing Radius31 in
Crawler length79 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Reach Along Ground185 in
Max Vertical Wall Digging Depth93 in
Max.Dumping Height120 in
Max Digging Height175 in
Mximum dig radius189 in

General Specifications

General Specifications specifications
Operating Weight lbs (kg)5,625 (2,550) Starting 2025 Model Year
Digging Depth ft (m)9.3 (2.8) Starting 2025 Model Year
Engine hp (kW)20 (14.9) Starting 2025 Model Year
Digging Reach ft. (m)15.4 (4.7) Starting 2025 Model Year

Boom

Boom specifications
Boom swing left75 °
Boom swing right55 °

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Blades

Blades specifications
Blade Lift Height14 in
Maximum Drop below ground13 in
Overall Height96 in
