Kubota

U35S-2

Mini Excavator

Operating Weight
8,267 lb
Max Digging Depth
207 in
Gross Power
28.2 hp
Net Power
26.9 hp
All mini excavators

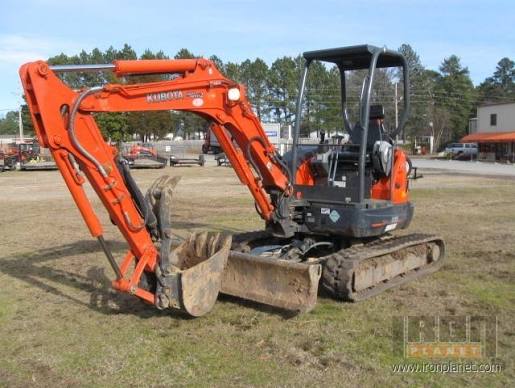

Kubota U35S-2 Mini Excavator
1 / 5
Image 1 of 5
Image: sunriseexcavator.en.made-in-china.com

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,267 lb
Fuel Capacity10.6 gal

Engine

Engine specifications
Engine ModelD1703-M-E3-BH-VS1
Displacement101 in³
Power Measured @2,250 rpm
Gross Power28.2 hp
Net Power26.9 hp

Dimensions

Dimensions specifications
Height - Top of Cab97 in
Width to Outside of Tracks57 in
Digging Depth124 in
Digging Reach203 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Max Travel Speed2.9 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth207 in
Max Vertical Wall Digging Depth203 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
