Liebherr

A316

Excavator

Operating Weight
41,645 lb
Net Power
117.0 hp
All excavators

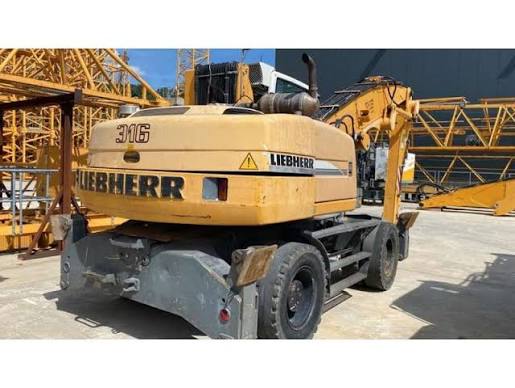

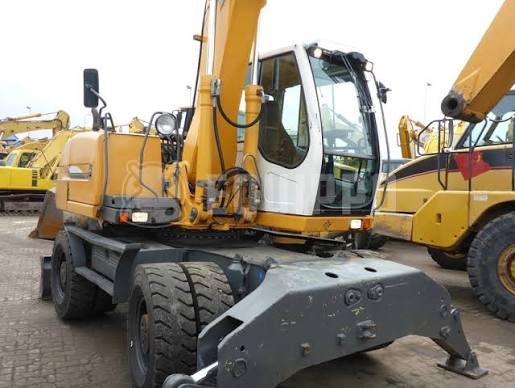

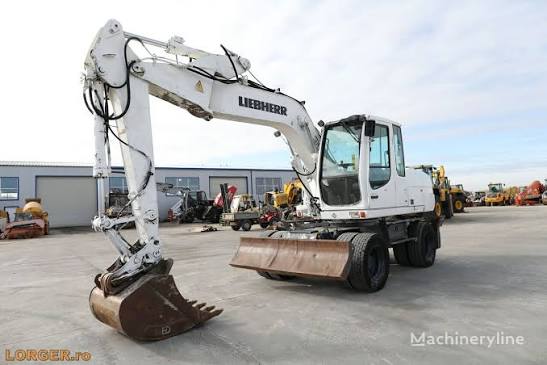

Liebherr A316 Excavator
1 / 5
Image 1 of 5
Image: cgtrader.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight41,645 lb
Operating Weight w/o Attachment41,866 lb
Fuel Capacity76.7 gal
Hydraulic Pump Flow Capacity71.4 gal/min
Hydraulic System Relief Valve Pressure5,076 psi
Engine Oil Capacity4.8 gal
Cooling System Fluid Capacity13.8 gal
Alternator Supplied Amperage55 A
Hydraulic Pump Typevariable displacement swash plate

Engine

Engine specifications
Engine ModelBF4M1013EC
Displacement293 in³
Power Measured @1,800 rpm
Net Power117.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump TypeVariable displacement swash-plate
Pump Capacity71.4 gal/min
Relief Pressure5,076 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab125 in
Wheelbase101 in
Overall Width8 in
Tail Swing Radius91 in
Shipping Height125 in
Shipping Length328 in
Overall Width - Outriggers Down150 in
Undercarriage Width101 in
Upperstructure Clearance48 in

Transmission

Transmission specifications
Max Speed12.5 mph
Max Travel Speed12.5 mph
Number of Forward Gears2
Number of Reverse Gears2

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Shipping Length of Unit328 in
Shipping Height of Unit125 in

Boom/Stick Mat. Handler Option 1

Boom/Stick Mat. Handler Option 1 specifications
Boom/Stick Option (MAT) 1Hydr.Adjustable Boom w/backhoe w/stick 2250mm
Max Depth210 in
Max Height408 in
Max Reach Along Ground360 in

Boom/Stick Mat. Handler Option 2

Boom/Stick Mat. Handler Option 2 specifications
Boom/Stick Option (MAT) 2Hydr Adjustable w/stick 2650mm
Max Depth190 in
Max Height420 in
Max Reach Along Ground372 in

Boom/Stick Mat. Handler Option 3

Boom/Stick Mat. Handler Option 3 specifications
Boom/Stick Option (MAT) 3Gooseneck Boom 5500mm w/stick 40000mm
Max Depth98 in
Max Height396 in
Max Reach Along Ground348 in

Wheel Undercarriage

Wheel Undercarriage specifications
Wheelbase101 in
Width w/ Stabilizers on Ground150 in
Tire Size10 – 20
