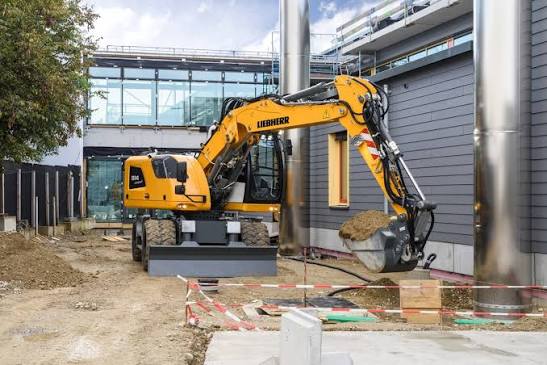

Image 1 of 5
Specifications
55 data points
Operating Specifications
| Operating Weight | 50,500 lb |
|---|---|
| Fuel Capacity | 105.7 gal |
| Hydraulic Pump Flow Capacity | 113.6 gal/min |
| Hydraulic System Fluid Capacity | 113.6 gal |
| Hydraulic System Relief Valve Pressure | 5,076 psi |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 A |
| Tire Size | 10.00-20 |
Engine
| Engine Model | D 934 S |
|---|---|
| Displacement | 391 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 163.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbo-charged and after-cooled reduced emissions |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 109 in |
| Overall Width | 8 in |
| Upper Structure Clearance | 50 in |
| Overall Width - Outriggers Down | 158 in |
Transmission
| Max Travel Speed | 12.5 mph |
|---|---|
| Transmission Type | oversized two speed power shift transmission with additional creeper speed |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Reference Bucket Capacity | 1.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.90 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 235 in |
|---|---|
| Max Cutting Height | 42 in |
| Max Reach Along Ground | 373 in |
| Max Loading Height | 296 in |
| Shipping Length of Unit | 377 in |
| Shipping Height of Unit | 126 in |
| Max Vertical Wall Dig Depth | 166 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 243 in |
|---|---|
| Max Cutting Height | 427 in |
| Max Reach Along Ground | 380 in |
| Max Loading Height | 301 in |
| Shipping Height of Unit | 126 in |
| Shipping Length of Unit | 377 in |
| Max Vertical Wall Dig Depth | 172 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 251 in |
|---|---|
| Max Cutting Height | 433 in |
| Max Reach Along Ground | 389 in |
| Max Loading Height | 307 in |
| Shipping Height of Unit | 126 in |
| Shipping Length of Unit | 377 in |
| Max Vertical Wall Dig Depth | 178 in |
Boom/Stick Mobile Excavator Option 4
| Max Digging Depth | 267 in |
|---|---|
| Max Cutting Height | 444 in |
| Max Reach Along Ground | 402 in |
| Max Loading Height | 318 in |
| Shipping Height of Unit | 126 in |
| Shipping Length of Unit | 377 in |
| Max Vertical Wall Dig Depth | 193 in |
