Liebherr

R900 HDS

Excavator

Operating Weight
50,486 lb
Max Digging Depth
138 in
Max Digging Depth
154 in
Net Power
89.9 hp
All excavators

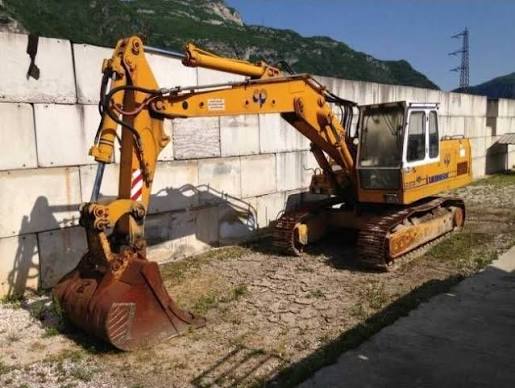

Liebherr R900 HDS Excavator
1 / 5
Image 1 of 5
Image: machineryline.info

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,486 lb
Fuel Capacity52.9 gal
Hydraulic Pump Flow Capacity67.7 gal/min
Hydraulic System Fluid Capacity47.6 gal
Hydraulic System Relief Valve Pressure5,221 psi
Operating Voltage24 V
Alternator Supplied Amperage35 A

Engine

Engine specifications
Engine ModelBF4L 913
Power Measured @2,000 rpm
Net Power89.9 hp
Aspirationin-line engine air-cooled

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab130 in
Length of Track on Ground133 in
Tail Swing Radius70 in
Width to Outside of Tracks100 in
Removal Counterweight Clearance46 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.2 mph
Shoe Size20 in
Drawbar Pull53,954 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth138 in
Max Reach Along Ground264 in
Max Loading Height204 in
Max Cutting Height264 in
Shipping Length of Unit343 in
Shipping Height of Unit113 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth154 in
Max Cutting Height330 in
Max Loading Height264 in
Max Reach Along Ground300 in
Shipping Length of Unit393 in
Shipping Height of Unit134 in
