Liebherr

R900C

Excavator

Operating Weight
41,888 lb
Max Digging Depth
243 in
Net Power
118.1 hp
All excavators
Liebherr R900C Excavator
1 / 5

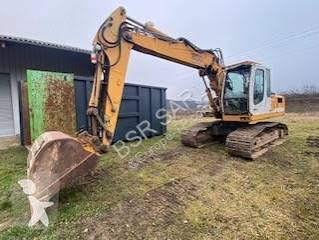

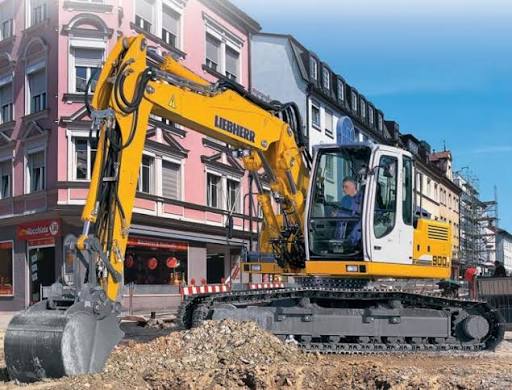

Image 1 of 5
Image: sodineg.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight41,888 lb
Hydraulic Pump Flow Capacity73.8 gal/min
Hydraulic System Relief Valve Pressure4,641 psi

Engine

Engine specifications
Engine ModelD924TI-E
Displacement403 in³
Power Measured @1,800 rpm
Net Power118.1 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground88 in
Tail Swing Radius133 in
Width to Outside of Tracks100 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.2 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth243 in
Max Reach Along Ground374 in
Max Loading Height300 in
Max Vertical Wall Digging Depth166 in
Shipping Length of Unit322 in
Shipping Height of Unit122 in

Bucket

Bucket specifications
Reference Bucket Capacity1.20 yd³
