Liebherr

R914C

Excavator

Operating Weight
52,250 lb
Max Digging Depth
245 in
Max Digging Depth
257 in
Net Power
157.0 hp
All excavators

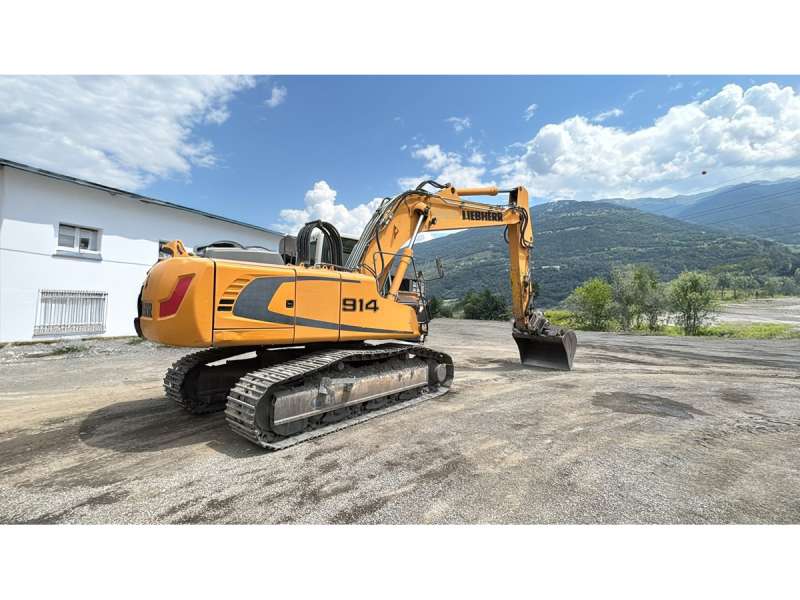

Liebherr R914C Excavator
1 / 5
Image 1 of 5
Image: sodineg.com

Specifications

59 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,250 lb
Fuel Capacity100.4 gal
Hydraulic Pump Flow Capacity56.6 gal/min
Hydraulic System Fluid Capacity132.1 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD 934 S
Displacement389 in³
Power Measured @1,800 rpm
Net Power157.0 hp
Aspirationturbo-charged and after-cooled reduced emissions

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground135 in
Tail Swing Radius110 in
Width to Outside of Tracks100 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side2
Max Travel Speed3.3 mph
Shoe Size20 in
Number of Carrier Rollers per Side8
Drawbar Pull58,450 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth245 in
Max Reach Along Ground371 in
Max Loading Height251 in
Max Cutting Height371 in
Shipping Length of Unit374 in
Shipping Height of Unit122 in

Bucket

Bucket specifications
Reference Bucket Capacity1.40 yd³
Maximum Bucket Capacity1.90 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth257 in
Max Cutting Height374 in
Max Loading Height254 in
Max Reach Along Ground380 in
Shipping Length of Unit374 in
Shipping Height of Unit122 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth269 in
Max Cutting Height383 in
Max Loading Height263 in
Max Reach Along Ground393 in
Shipping Length of Unit374 in
Shipping Height of Unit122 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth296 in
Max Cutting Height396 in
Max Reach Along Ground418 in
Max Loading Height275 in
Shipping Length of Unit393 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth223 in
Max Reach Along Ground386 in
Max Cutting Height424 in
Max Loading Height298 in
Shipping Height of Unit122 in
Shipping Length of Unit390 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth235 in
Max Reach Along Ground398 in
Max Cutting Height432 in
Max Loading Height307 in
Shipping Length of Unit390 in
Shipping Height of Unit122 in
