Liebherr

R918 Litronic

Excavator

Operating Weight
44,754 lb
Max Digging Depth
226 in
Max Digging Depth
241 in
All excavators

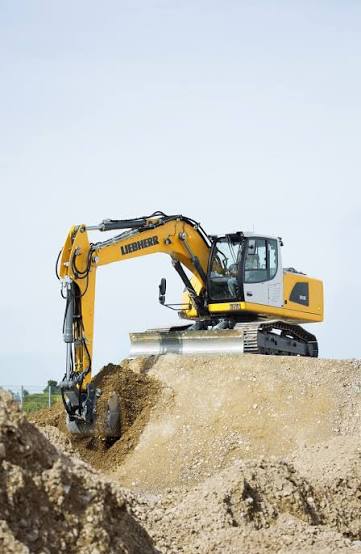

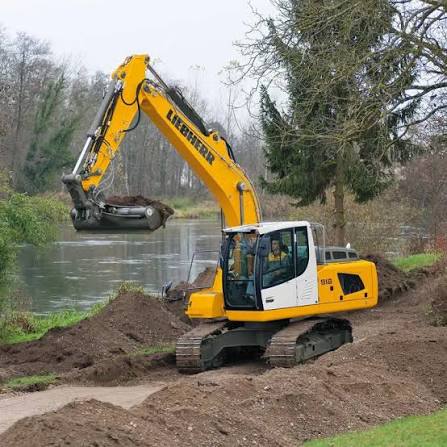

Liebherr R918 Litronic Excavator
1 / 5
Image 1 of 5
Image: factory.rayattachments.com

Specifications

56 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,754 lb
Hydraulic System Relief Valve Pressure5,076 psi

Engine

Engine specifications
Engine ModelD924 A7-04
Displacement275 in³
Power Measured @1,800 rpm
AspirationTurbo-charged and after-coolerreduced emissions
Max Torque503 lb-ft
Bore4 in
Stroke5 in
Emission Tier LevelTier 4 Final
Air cleanerDry-type
Exhaust Gas Recirculation (EGR)DOC Deutz
Horsepower, Net-ISO 9249163.0 hp
Horsepower, Net-SAE J1349161.0 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab121 in
Undercarriage Width165 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.7 mph
Number of Carrier Rollers per Side43,648
Drawbar Pull43,163 lb
Tail Swing Radius61 in

Fluid Capacities

Fluid Capacities specifications
Fuel Tank97.5 gal
Hydraulic system92.5 gal
Urea tank12.2 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth226 in
Max Reach Along Ground350 in
Max.Dumping Height235 in
Bucket Digging Force - SAE20,008 lb
Bucket Digging Force - ISO21,132 lb
Max. teeth height4,229 in
Breakout force - ISO30,349 lb
Breakout force - SAE26,528 lb

Bucket

Bucket specifications
Reference Bucket Capacity0.80 yd³
Maximum Bucket Capacity2.00 yd³
Minimum Bucket Capacity1.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth241 in
Max.Dumping Height243 in
Bucket Digging Force - SAE17,985 lb
Bucket Digging Force - ISO18,884 lb
Max. teeth height361 in
Maximum Reach at Ground Level362 in
Breakout force-ISO30,349 lb
Breakout force-SAE26,528 lb

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth257 in
Max Reach Along Ground374 in
Max.Dumping Height233 in
Bucket Digging Force - SAE16,411 lb
Bucket Digging Force - ISO17,085 lb
Breakout force-ISO30,349 lb
Max. teeth height4,111 in
Breakout force-SAE26,528 lb

Electrical System

Electrical System specifications
Batteries2 x 135 Ah / 12 V volts
Alternator—
Voltage24 V
Engine idlingsensor controlled
