Liebherr

R924B

Excavator

Max Digging Depth
230 in
Max Digging Depth
252 in
All excavators

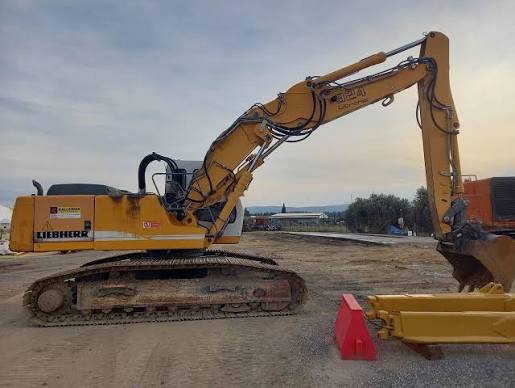

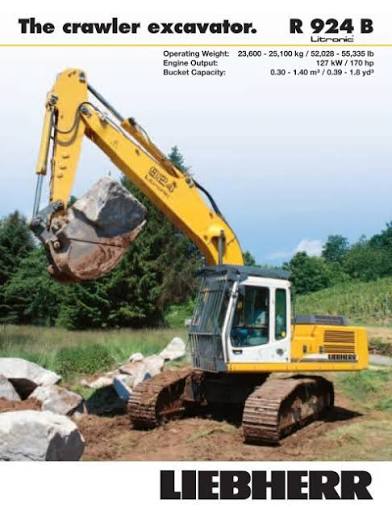

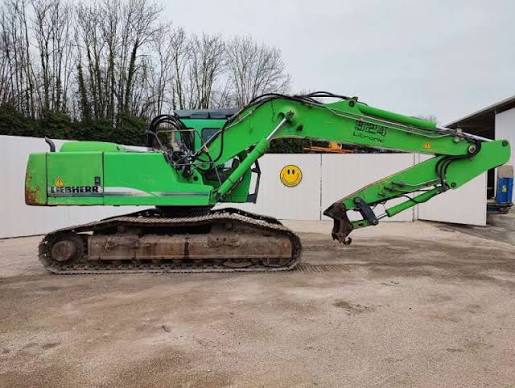

Liebherr R924B Excavator
1 / 5
Image 1 of 5
Image: bossmachinery.nl

Specifications

90 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment60,583 lb
Fuel Capacity95.2 gal
Hydraulic Pump Flow Capacity113.1 gal/min
Hydraulic System Relief Valve Pressure5,076 psi
Operating Voltage24 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Displacement403 in³
Power Measured @2,000 rpm
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump TypeVariable Flow Double Pump
Pump Capacity113.1 gal/min
Relief Pressure5,076 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab121 in
Length of Track on Ground151 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance46 in
Digging Depth288 in
Digging Reach288 in
Shipping Height121 in
Shipping Length395 in
Undercarriage Width119 in
Upperstructure Clearance46 in
Height to Top of Cab - fixed riser168 in

Transmission

Transmission specifications
Max Speed3.3 mph
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Undercarriage

Undercarriage specifications
Track Gauge24 in
Number of Track Rollers per Side9
Max Travel Speed3.3 mph
Shoe Size24 in
Number of Carrier Rollers per Side2
Drawbar Pull59,350 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth230 in
Max Reach Along Ground359 in
Max Loading Height243 in
Max Cutting Height362 in
Shipping Length of Unit389 in
Shipping Height of Unit121 in

Bucket

Bucket specifications
Reference Bucket Capacity1.40 yd³
Maximum Bucket Capacity2.39 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
Swing Torque54,579 lb-ft

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth252 in
Max Cutting Height373 in
Max Loading Height252 in
Max Reach Along Ground378 in
Shipping Length of Unit386 in
Shipping Height of Unit119 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth276 in
Max Cutting Height384 in
Max Loading Height264 in
Max Reach Along Ground402 in
Shipping Length of Unit386 in
Shipping Height of Unit121 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth304 in
Max Cutting Height398 in
Max Reach Along Ground427 in
Max Loading Height276 in
Shipping Length of Unit386 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth235 in
Max Reach Along Ground373 in
Max Cutting Height420 in
Max Loading Height292 in
Shipping Height of Unit119 in
Shipping Length of Unit402 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth257 in
Max Reach Along Ground395 in
Max Cutting Height435 in
Max Loading Height309 in
Shipping Length of Unit398 in
Shipping Height of Unit115 in

Boom/Stick Mat. Handler Option 1

Boom/Stick Mat. Handler Option 1 specifications
Boom/Stick Option (MAT) 14000 mm Stick
Max Depth178 in
Max Height552 in
Max Reach Along Ground493 in

Boom/Stick Mat. Handler Option 2

Boom/Stick Mat. Handler Option 2 specifications
Boom/Stick Option (MAT) 25000 mm Stick
Max Depth236 in
Max Height512 in
Max Reach Along Ground493 in

Track Undercarriage

Track Undercarriage specifications
Shoe Size24 in
Number of Track Rollers per Side9
Length of Track on Ground151 in
Track Gauge95 in

Boom/Stick Mat. Handler Option 3

Boom/Stick Mat. Handler Option 3 specifications
Boom/Stick Option (MAT) 36000 mm Stick
Max Depth276 in
Max Height512 in
Max Reach Along Ground531 in
