Liebherr

R924C

Excavator

Operating Weight
57,700 lb
Max Digging Depth
252 in
Max Digging Depth
264 in
Net Power
177.0 hp
All excavators

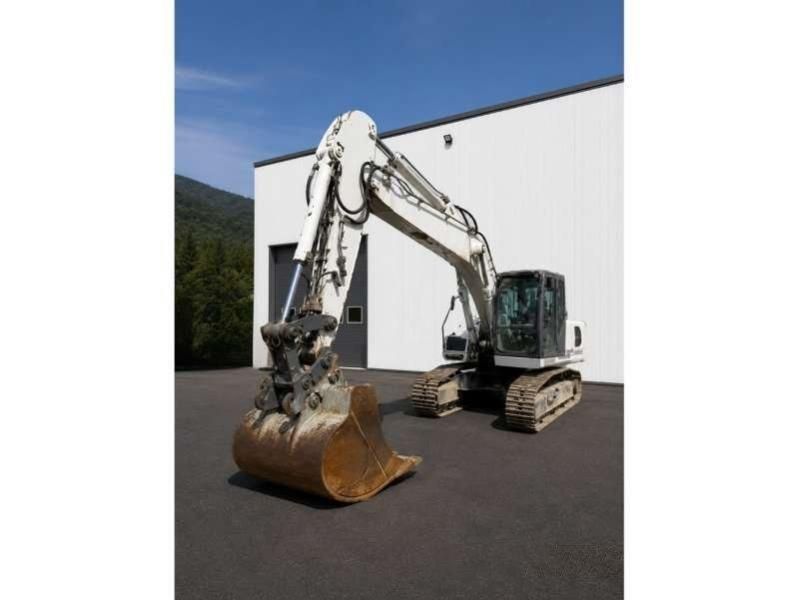

Liebherr R924C Excavator
1 / 5
Image 1 of 5
Image: e-farm.com

Specifications

59 data points

Operating Specifications

Operating Specifications specifications
Operating Weight57,700 lb
Fuel Capacity100.4 gal
Hydraulic Pump Flow Capacity56.6 gal/min
Hydraulic System Fluid Capacity132.1 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD 934 S
Displacement388 in³
Power Measured @1,800 rpm
Net Power177.0 hp
Aspirationturbo-charged and after-cooled reduced emissions

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground151 in
Tail Swing Radius117 in
Width to Outside of Tracks102 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side8
Max Travel Speed3.3 mph
Shoe Size20 in
Number of Carrier Rollers per Side2
Drawbar Pull59,350 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth252 in
Max Reach Along Ground378 in
Max Loading Height254 in
Max Cutting Height374 in
Shipping Length of Unit389 in
Shipping Height of Unit121 in

Bucket

Bucket specifications
Reference Bucket Capacity1.40 yd³
Maximum Bucket Capacity2.39 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth264 in
Max Cutting Height378 in
Max Loading Height258 in
Max Reach Along Ground390 in
Shipping Length of Unit389 in
Shipping Height of Unit121 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth276 in
Max Cutting Height384 in
Max Loading Height264 in
Max Reach Along Ground402 in
Shipping Length of Unit390 in
Shipping Height of Unit121 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth304 in
Max Cutting Height398 in
Max Reach Along Ground427 in
Max Loading Height276 in
Shipping Length of Unit393 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth223 in
Max Reach Along Ground386 in
Max Cutting Height424 in
Max Loading Height298 in
Shipping Height of Unit121 in
Shipping Length of Unit396 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth235 in
Max Reach Along Ground398 in
Max Cutting Height432 in
Max Loading Height307 in
Shipping Length of Unit396 in
Shipping Height of Unit121 in
