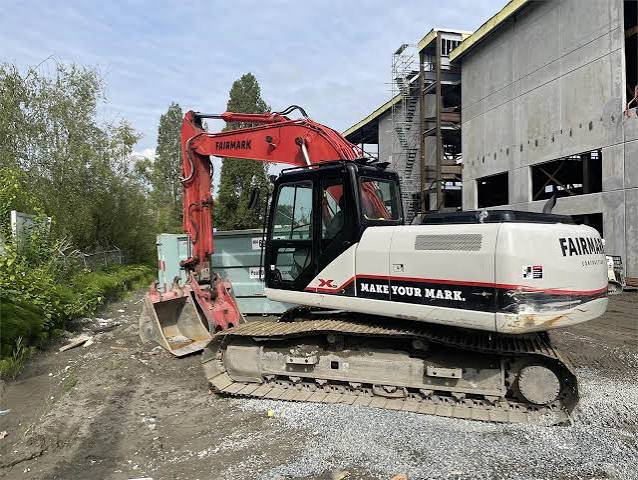

Link Belt
210 X2
- Operating Weight
- 47,400 lb
- Max Digging Depth
- 263 in
- Max Digging Depth
- 241 in
- Net Power
- 157.0 hp
.jpg)
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 47,400 lb |
|---|---|
| Fuel Capacity | 108.4 gal |
| Hydraulic Pump Flow Capacity | 111.4 gal/min |
| Hydraulic System Fluid Capacity | 63.5 gal |
| Hydraulic System Relief Valve Pressure | 4,970 psi |
| Engine Oil Capacity | 6.2 gal |
| Cooling System Fluid Capacity | 6.8 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | AI-4HK1X |
|---|---|
| Displacement | 317 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 157.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 463 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 120 in |
| Length of Track on Ground | 145 in |
| Tail Swing Radius | 108 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 95 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 263 in |
|---|---|
| Max Reach Along Ground | 384 in |
| Max Loading Height | 269 in |
| Max Vertical Wall Digging Depth | 235 in |
| Max Cutting Height | 379 in |
| Shipping Length of Unit | 371 in |
| Shipping Height of Unit | 120 in |
Bucket
| Reference Bucket Capacity | 1.40 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.80 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 241 in |
|---|---|
| Max Vertical Wall Digging Depth | 217 in |
| Max Cutting Height | 371 in |
| Max Loading Height | 260 in |
| Max Reach Along Ground | 365 in |
| Shipping Length of Unit | 374 in |
| Shipping Height of Unit | 126 in |
