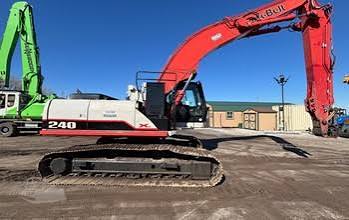

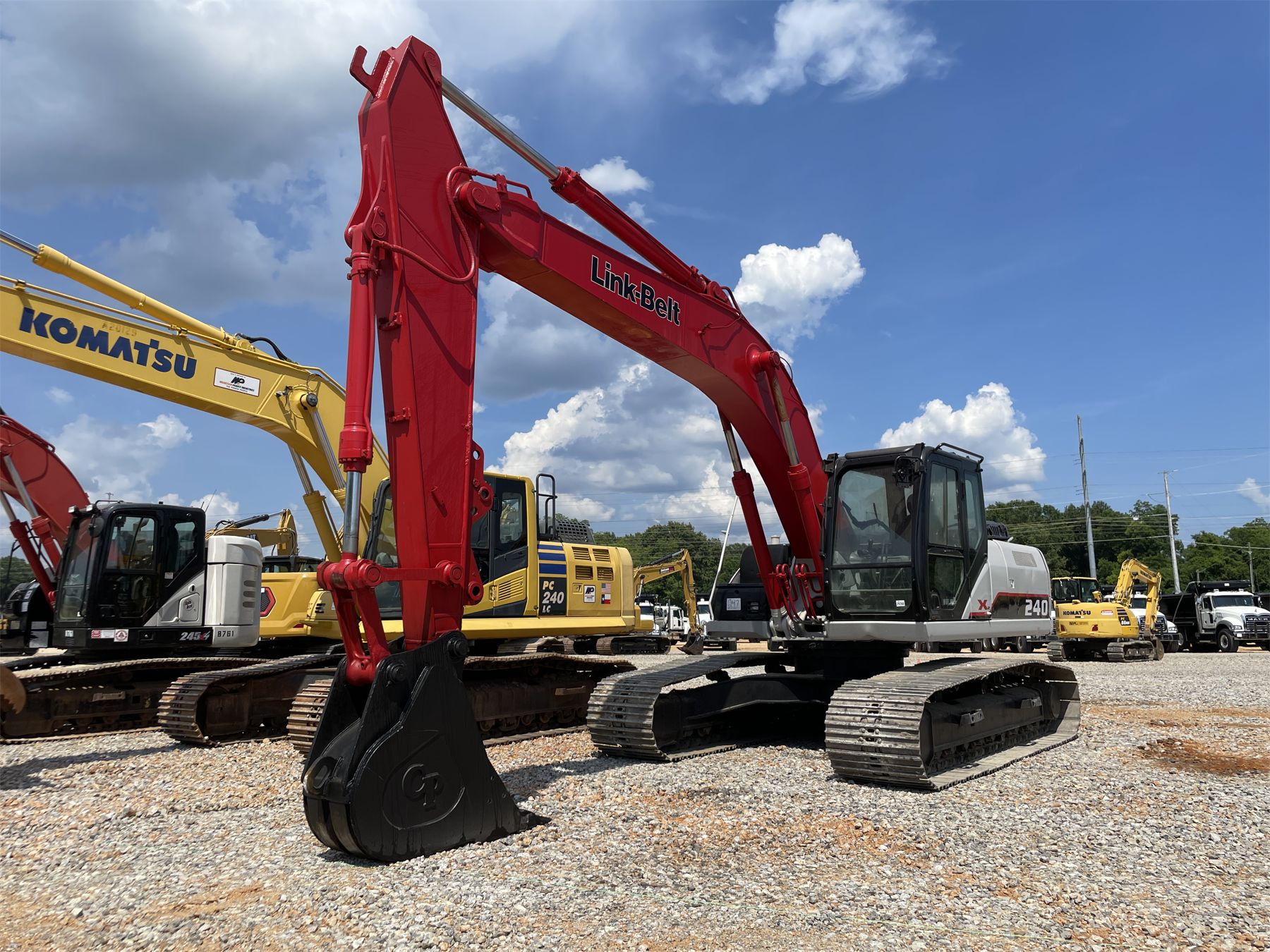

Link Belt
240 X2
- Operating Weight
- 54,895 lb
- Max Digging Depth
- 272 in
- Max Digging Depth
- 252 in
- Net Power
- 177.0 hp
1 / 5
Image 1 of 5
Specifications
55 data points
Operating Specifications
| Operating Weight | 54,895 lb |
|---|---|
| Fuel Capacity | 108.4 gal |
| Hydraulic Pump Flow Capacity | 123.6 gal/min |
| Hydraulic System Fluid Capacity | 66.1 gal |
| Hydraulic System Relief Valve Pressure | 4,970 psi |
| Engine Oil Capacity | 6.2 gal |
| Cooling System Fluid Capacity | 6.7 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.6 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | AH-4HK1X |
|---|---|
| Displacement | 317 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 177.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 469 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 122 in |
| Length of Track on Ground | 151 in |
| Tail Swing Radius | 117 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 44 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 272 in |
|---|---|
| Max Reach Along Ground | 398 in |
| Max Loading Height | 267 in |
| Max Vertical Wall Digging Depth | 243 in |
| Max Cutting Height | 385 in |
| Shipping Length of Unit | 391 in |
| Shipping Height of Unit | 125 in |
Bucket
| Reference Bucket Capacity | 1.70 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.50 yd³ |
| Minimum Bucket Capacity | 0.80 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 252 in |
|---|---|
| Max Vertical Wall Digging Depth | 226 in |
| Max Cutting Height | 377 in |
| Max Loading Height | 258 in |
| Max Reach Along Ground | 379 in |
| Shipping Length of Unit | 394 in |
| Shipping Height of Unit | 131 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 293 in |
|---|---|
| Max Cutting Height | 397 in |
| Max Loading Height | 278 in |
| Max Vertical Wall Digging Depth | 264 in |
| Max Reach Along Ground | 419 in |
| Shipping Length of Unit | 391 in |
| Shipping Height of Unit | 131 in |
