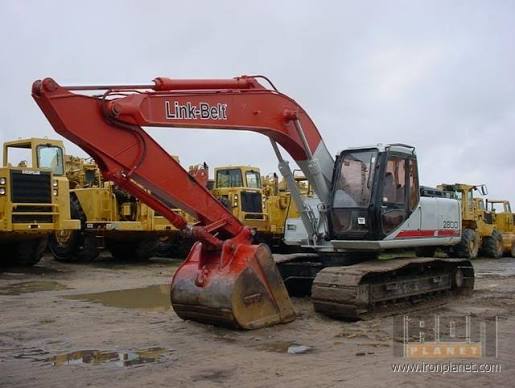

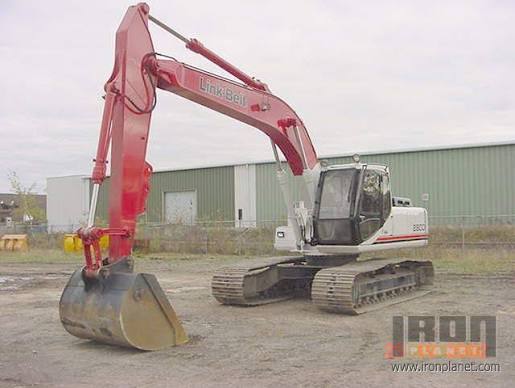

Link Belt
JCB
JS240L
Excavator
13 specifications
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 47,190 lb |
|---|---|
| Fuel Capacity | 81.9 gal |
| Hydraulic Pump Flow Capacity | 104.0 gal/min |
| Hydraulic System Fluid Capacity | 52.9 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 5.2 gal |
| Cooling System Fluid Capacity | 6.8 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | 6BG1T |
|---|---|
| Displacement | 396 in³ |
| Power Measured @ | 1,900 rpm |
| Net Power | 128.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 325 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 145 in |
| Tail Swing Radius | 107 in |
| Width to Outside of Tracks | 122 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 95 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 473 in |
|---|---|
| Max Reach Along Ground | 611 in |
| Max Loading Height | 411 in |
| Max Vertical Wall Digging Depth | 400 in |
| Max Cutting Height | 499 in |
| Shipping Length of Unit | 469 in |
| Shipping Height of Unit | 119 in |
Bucket
| Reference Bucket Capacity | 0.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.80 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
