Link Belt

ATC-3130

All Terrain Crane

Gross Power
523.0 hp
Max Speed - Forward
52.9 mph
Transport Width
119 in
All all terrain cranes

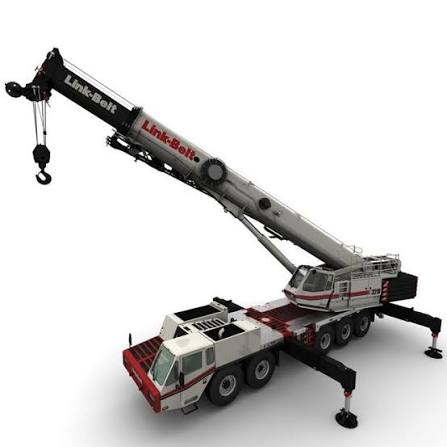

Link Belt ATC-3130 All Terrain Crane
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight108,233 lb
Tire Size20.5R25
Carrier Fuel Capacity132.1 gal
Operating Voltage24 V
Number of Axels5
Alternator Supplied Amperage300 A
Upper Structure Fuel Capacity84.6 gal
Carrier Hydraulic System Fluid Capacity76.7 gal
Carrier Oil Capacity10.6 gal
Upper Structure Oil Capacity4.3 gal

Dimensions

Dimensions specifications
Ground Clearance13 in
Transport Width119 in
Transport Height158 in
Transport Length589 in
Width w/ Outriggers Extended296 in
Upper Structure Tail Swing Radius190 in
Carrier Length472 in

Transmission

Transmission specifications
Max Speed - Forward52.9 mph
Max Speed - Reverse4.4 mph
Transmission Typeautomated manual transmission
Number of Forward Gears16
Number of Reverse Gears2

Boom

Boom specifications
Number of Sections5
Max Height @ Max Raise Angle - no jib2,166 in
Min Height @ Max Raise Angle639 in
Max Elevating Angle82 °
Swing Speed2 rpm
Min Working Radius120 in
Max Working Radius1,920 in
Height2,004 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power523.0 hp
Displacement972 in³
Max Torque1,770 lb-ft
Torque Measured @1,300 rpm
MakeLink-Belt
Power Measured @1,800 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power173.0 hp
Displacement259 in³
MakeLink-Belt
Max Torque487 lb-ft
Torque Measured @1,200 rpm
Power Measured @2,200 rpm
