Link Belt

HSP-8060

Rough Terrain Crane

Operating Weight
75,054 lb
Max Speed - Forward
21.0 mph
Gross Power
205.0 hp
All rough terrain cranes

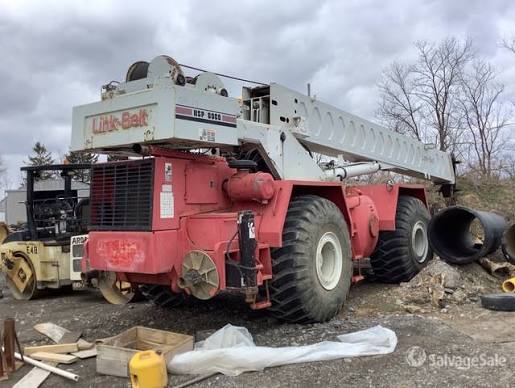

Link Belt HSP-8060 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: uncle-vova.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight75,054 lb
Fuel Capacity100.0 gal
Tire Size29.5 x 25
Operating Voltage12 V
Hydraulic System Fluid Capacity140.1 gal
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelGM 6V-53N
Displacement318 in³
Power Measured @2,700 rpm
Gross Power205.0 hp
Number of Cylinders6
Max Torque445 lb-ft
Bore4 in
Stroke5 in
Crankcase capacity4.6 gal

Hydraulic System

Hydraulic System specifications
Maximum operating pressure2,900 psi

Dimensions

Dimensions specifications
Ground Clearance33 in
Wheelbase151 in
Transport Width130 in
Transport Height152 in
Transport Length553 in
Width w/ Outriggers Extended300 in
Upper Structure Tail Swing Radius165 in
Carrier/Base Length329 in

Transmission

Transmission specifications
Max Speed - Forward21.0 mph
Number of Forward Gears6
Number of Reverse Gears2
Transmission TypePowershift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,321 in
Min Height @ Max Raise Angle421 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed3 rpm
