Link Belt

HTC-1040

Truck Crane

Operating Weight
60,424 lb
Max Speed - Forward
50.4 mph
Displacement
505 in³
All truck cranes

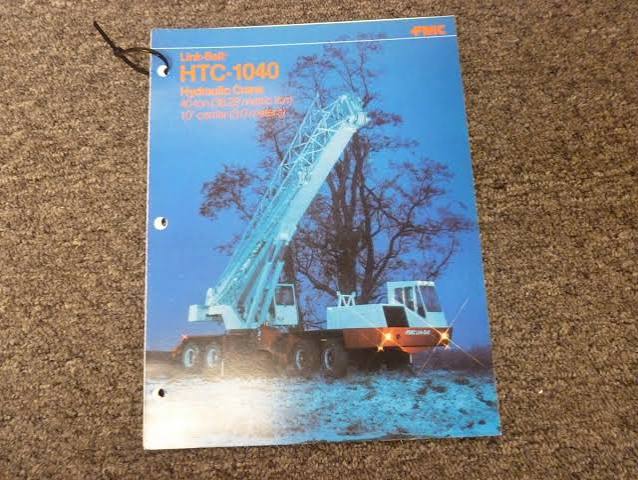

Link Belt HTC-1040 Truck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight60,424 lb
Operating Voltage24 V
Tire SizeFront - 15.0 x 22.5 (16 PR) Rear - 11.0 x 20.0 (14 PR)
Carrier Fuel Capacity100.0 gal
Upper Structure Hydraulic System Fluid Capacity140.0 gal
Alternator Supplied Amperage80 A

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width122 in
Transport Height134 in
Transport Length551 in
Width w/ Outriggers Extended299 in
Upper Structure Tail Swing Radius161 in
Carrier Length424 in

Transmission

Transmission specifications
Max Speed - Forward50.4 mph
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeFuller Roadranger RTO-6613

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,021 in
Min Height @ Max Raise Angle421 in
Max Elevating Angle78 °
Number of Sections3
Swing Speed3 rpm

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power240.0 hp
Displacement505 in³
Power Measured @2,200 rpm
MakeLink-Belt
Max Torque645 lb-ft
Number of cylinders6
bore4 in
Stroke6 in
