Link Belt

HTC-1170

Truck Crane

Operating Weight
96,880 lb
Max Speed - Forward
48.1 mph
Displacement
855 in³
All truck cranes

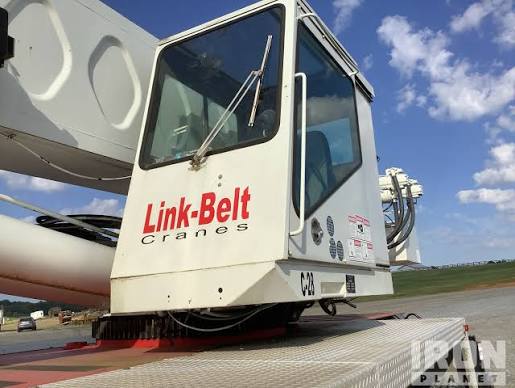

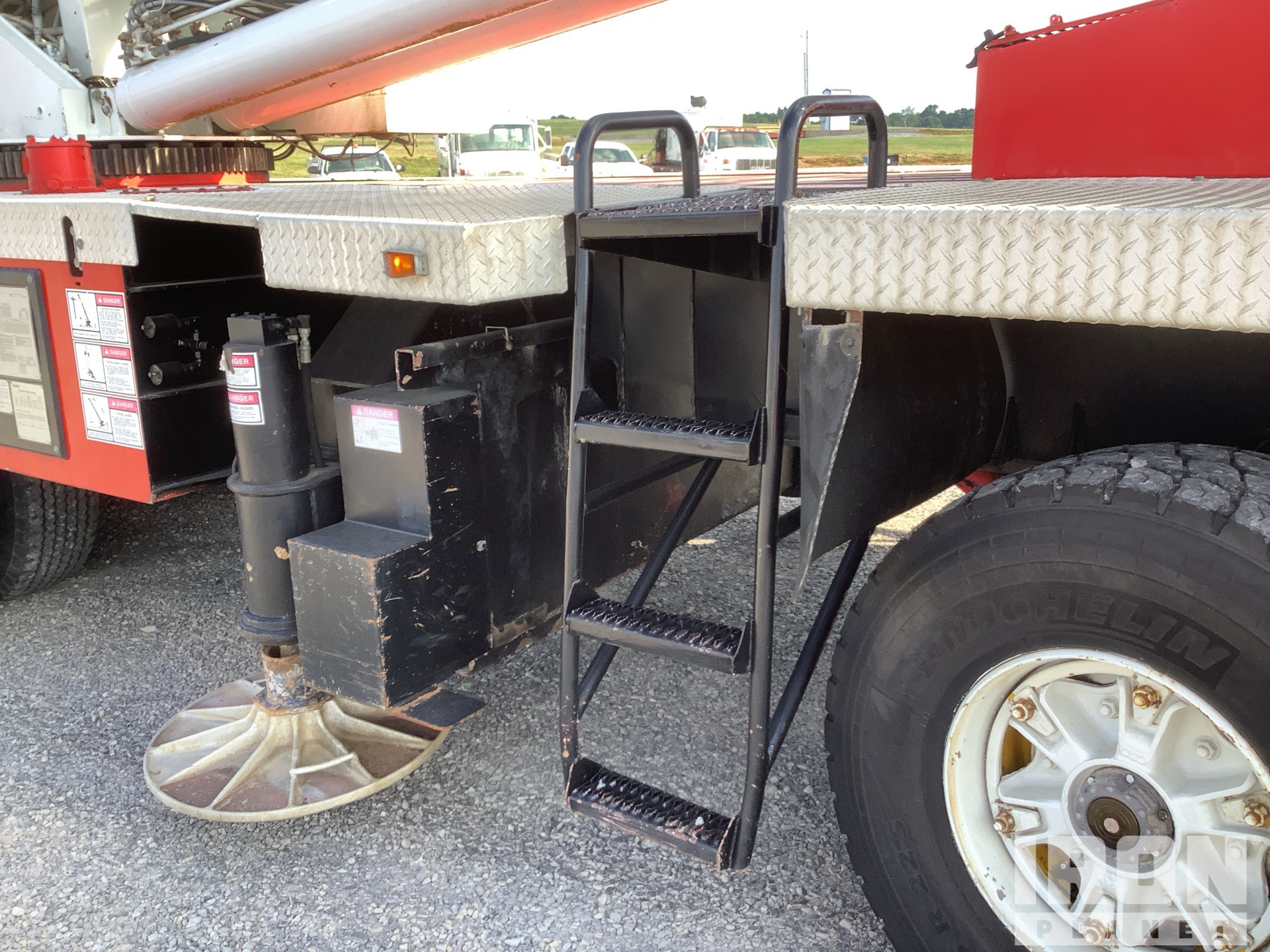

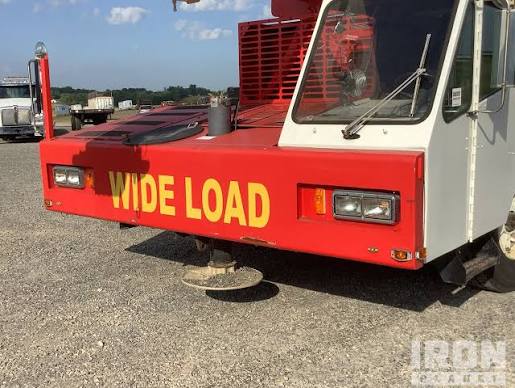

Link Belt HTC-1170 Truck Crane
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight96,880 lb
Operating Voltage12 V
Tire Size14.00 R 20
Carrier Fuel Capacity100.0 gal
Alternator Supplied Amperage80 A

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width133 in
Transport Height137 in
Transport Length585 in
Width w/ Outriggers Extended313 in
Upper Structure Tail Swing Radius161 in
Carrier Length480 in

Transmission

Transmission specifications
Max Speed - Forward48.1 mph

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,447 in
Min Height @ Max Raise Angle456 in
Number of Sections4

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power310.0 hp
Displacement855 in³
Power Measured @2,100 rpm
MakeLink-Belt
Max Torque1,005 lb-ft
Torque Measured @1,400 rpm
Number of cylinders6
bore6 in
Stroke6 in
