Link Belt

HTC-3140

Truck Crane

Operating Weight
104,581 lb
Displacement
912 in³
All truck cranes

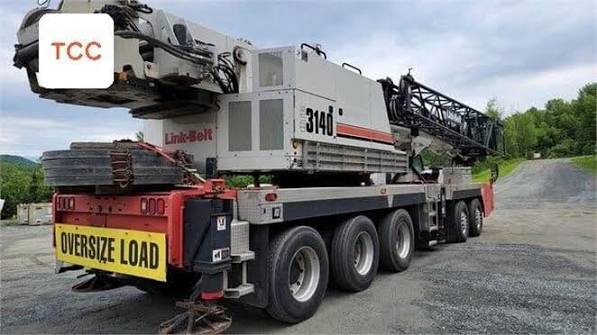

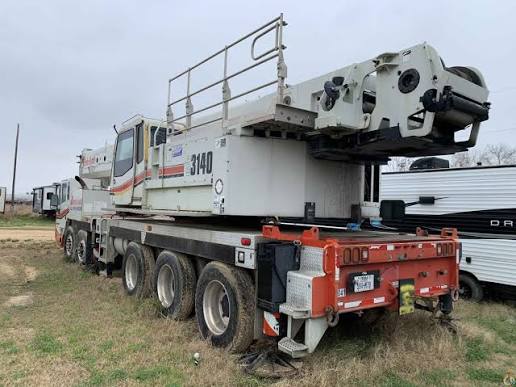

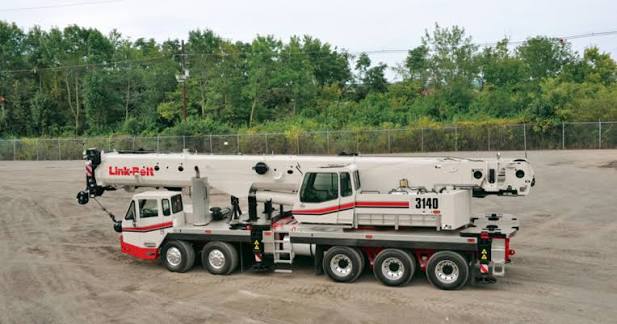

Link Belt HTC-3140 Truck Crane
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight104,581 lb
Tire SizeFront - 4445/65R22.5 Rear - 12R24.5
Fuel Capacity95.0 gal
DEF tank capacity10.0 gal
Hydraulic System Fluid Capacity155.0 gal
Hydraulic Pump Flow Capacity41.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase337 in
Transport Width113 in
Transport Height144 in
Transport Length580 in
Width w/ Outriggers Extended325 in
Carrier Length480 in

Transmission

Transmission specifications
Number of Forward Gears11
Number of Reverse Gears3

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib2,052 in
Min Height @ Max Raise Angle1,152 in
Max Elevating Angle80 °
Number of Sections5

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power581.0 hp
Displacement912 in³
Power Measured @2,000 rpm
MakeLink-Belt
Max Torque1,850 lb-ft
Torque Measured @1,200 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power250.0 hp
Displacement409 in³
MakeLink-Belt
Power Measured @2,000 rpm
Torque Measured @1,500 rpm
Max Torque730 lb-ft
