Zoomlion

QY25E

Truck Crane

Operating Weight
63,780 lb
Max Lift Capacity
55,116 lb
Max Speed - Forward
44.8 mph
All truck cranes

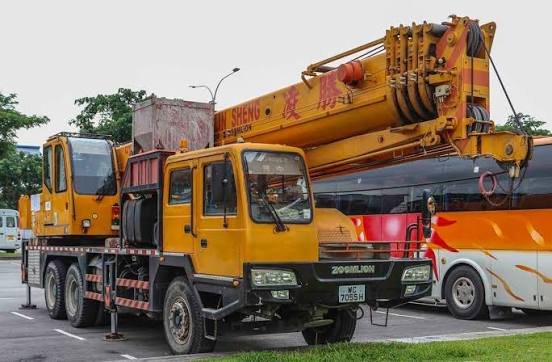

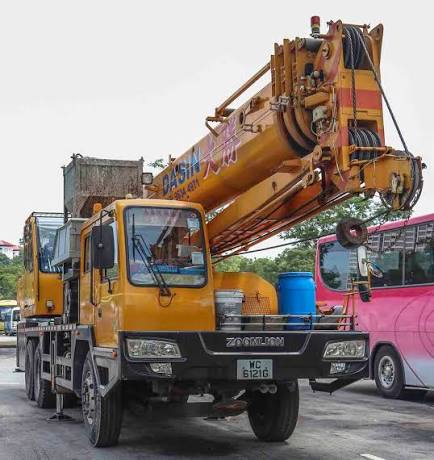

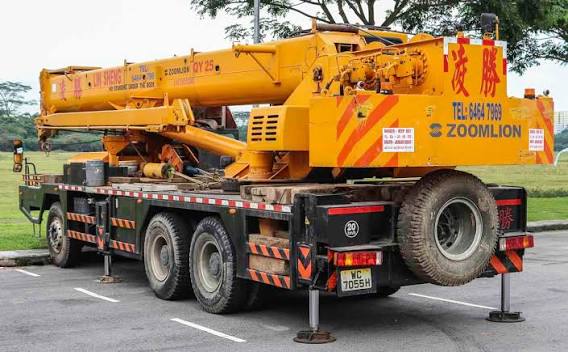

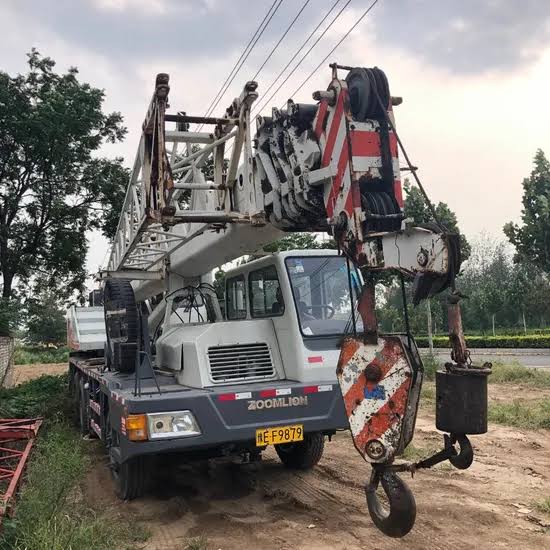

Zoomlion QY25E Truck Crane
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight63,780 lb
Operating Voltage24 V

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width100 in
Transport Height137 in
Transport Length512 in
Width w/ Outriggers Extended241 in

Transmission

Transmission specifications
Max Speed - Forward44.8 mph

Boom

Boom specifications
Max Lift Capacity55,116 lb
Max Height @ Max Raise Angle - no jib1,311 in
Min Height @ Max Raise Angle414 in
Max Elevating Angle80 °
Swing Speed2 rpm

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power266.9 hp
Power Measured @2,200 rpm
MakeZoomlion
Max Torque811 lb-ft
Torque Measured @1,600 rpm
