Link Belt

HTC-8660

Truck Crane

Operating Weight
65,605 lb
Max Speed - Forward
60.7 mph
Displacement
763 in³
All truck cranes

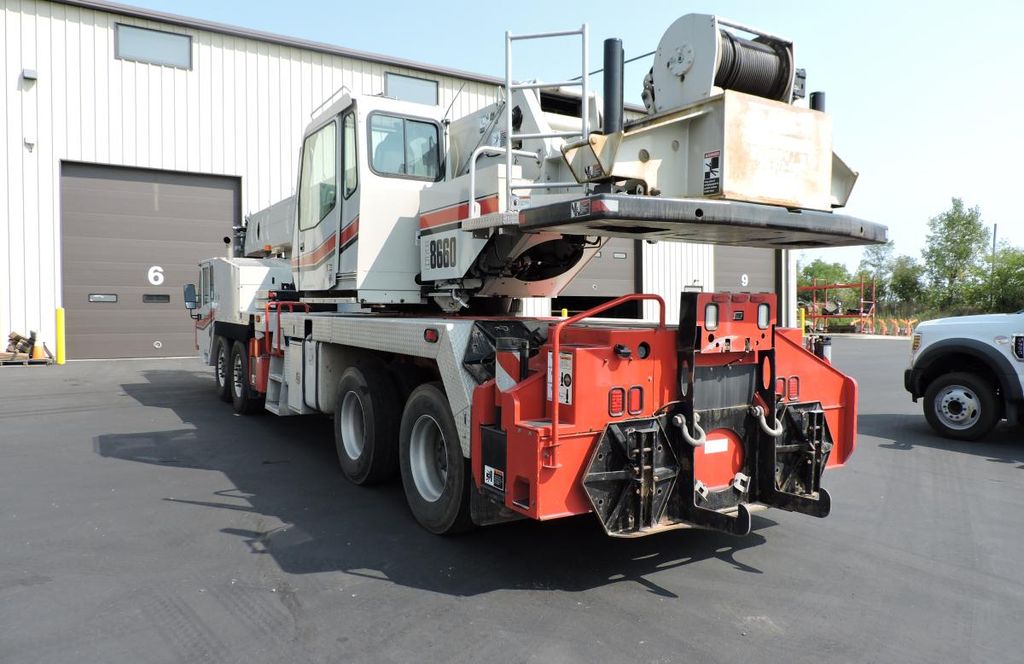

Link Belt HTC-8660 Truck Crane
1 / 5
Image 1 of 5
Image: thecraneclub.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight65,605 lb
Operating Voltage12 V
Tire Sizefront 425/64R22.5 rear 11R22.5
Carrier Fuel Capacity75.0 gal
Number of Axels4
Alternator Supplied Amperage135 A
Carrier Hydraulic System Fluid Capacity144.1 gal
Carrier Oil Capacity10.6 gal

Dimensions

Dimensions specifications
Ground Clearance15 in
Transport Width102 in
Transport Height139 in
Transport Length523 in
Width w/ Outriggers Extended247 in
Upper Structure Tail Swing Radius154 in
Carrier Length444 in

Transmission

Transmission specifications
Max Speed - Forward60.7 mph
Max Speed - Reverse5.4 mph
Number of Forward Gears12
Number of Reverse Gears2
Transmission Typemanual transmission

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,410 in
Min Height @ Max Raise Angle516 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed3 rpm
Min Working Radius84 in
Max Working Radius1,200 in
Height1,320 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power365.0 hp
Displacement763 in³
Power Measured @1,800 rpm
MakeLink-Belt
Max Torque1,350 lb-ft
Torque Measured @1,200 rpm
