Link Belt

HTC-50W

Truck Crane

Operating Weight
66,683 lb
Max Speed - Forward
45.9 mph
Displacement
426 in³
All truck cranes

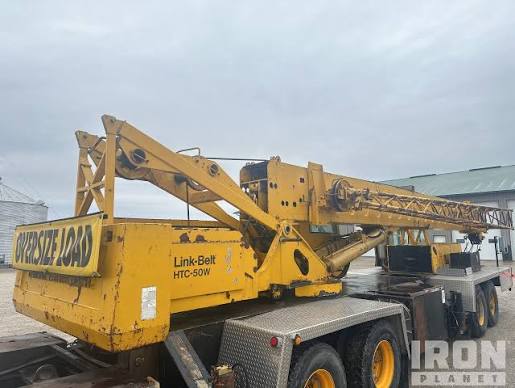

Link Belt HTC-50W Truck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight66,683 lb
Operating Voltage24 V
Tire SizeFront - 16.50 x 22.5 Rear - 12.00 x 20
Carrier Fuel Capacity92.0 gal
Upper Structure Hydraulic System Fluid Capacity267.0 gal
Alternator Supplied Amperage65 A

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width119 in
Transport Height130 in
Transport Length522 in
Width w/ Outriggers Extended283 in
Upper Structure Tail Swing Radius141 in
Carrier Length422 in

Transmission

Transmission specifications
Max Speed - Forward45.9 mph
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeFuller Roadranger RTO-613

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,080 in
Min Height @ Max Raise Angle421 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power238.0 hp
Displacement426 in³
Power Measured @2,100 rpm
MakeLink-Belt
Max Torque635 lb-ft
Number of cylinders6
bore4 in
Stroke5 in
