Link Belt

L125

Wheel Loader

Operating Weight
24,912 lb
Bucket Capacity - heaped
2.60 yd³
Gross Power
135.0 hp
Net Power
130.0 hp
All wheel loaders

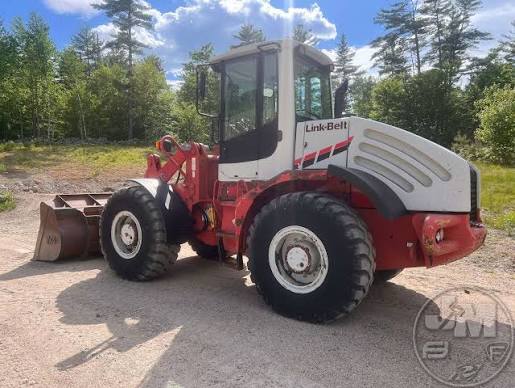

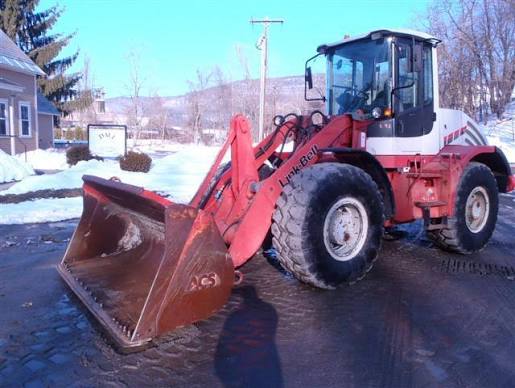

Link Belt L125 Wheel Loader
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,912 lb
Fuel Capacity52.9 gal
Tire Size20.5 R25
Hydraulic System Fluid Capacity31.8 gal
Static Tipping Weight19,450 lb
Operating Voltage24 V
Turning Radius219 in
Engine Oil Fluid Capacity4.8 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity3.5 gal
Rear Axle/Diff Fluid Capacity3.5 gal
Transmission Fluid Capacity4.8 gal

Engine

Engine specifications
Engine Model6BTA5.9
Displacement360 in³
Power Measured @2,200 rpm
Gross Power135.0 hp
Net Power130.0 hp
Number of Cylinders6
AspirationTurbocharged with Intercooler
Torque Measured @1,600 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity32.0 gal/min
Raise Time5.4 s
Lower Time3.8 s
Dump Time1.8 s
Relief Valve Setting4,060 psi
Pump TypeVariable Displacement

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab128 in
Wheelbase115 in
Width Over Tires93 in
Reach at Max Lift and Dump39 in
Length with Bucket on Ground268 in
Hinge Pin - Max Height151 in

Transmission

Transmission specifications
Max Speed - Forward23.2 mph
Max Speed - Reverse15.1 mph
Transmission TypePower Shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.60 yd³
Dump Clearance at Max Raise115 in
Breakout Force22,031 lb
