Link Belt

RTC-80100

Rough Terrain Crane

Operating Weight
123,000 lb
Max Speed - Forward
18.6 mph
All rough terrain cranes

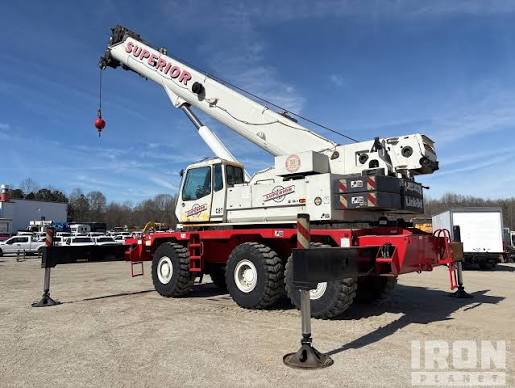

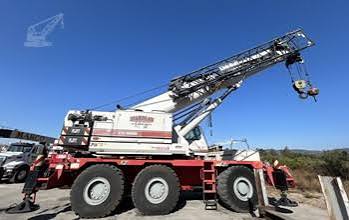

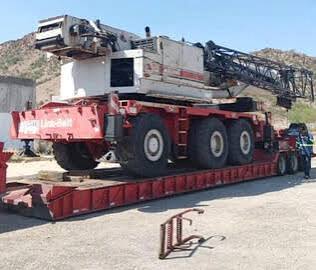

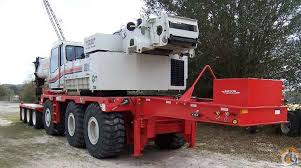

Link Belt RTC-80100 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight123,000 lb
Fuel Capacity95.0 gal
Tire Size23.5x25 - 2 star radial
Operating Voltage12 V
Hydraulic System Fluid Capacity255.0 gal
Alternator Supplied Amperage130 A
Engine Oil Capacity7.1 gal

Engine

Engine specifications
Engine ModelSeries 40
Net Power330.0 hp
Max Torque1,050 lb-ft

Dimensions

Dimensions specifications
Wheelbase9 in
Transport Width144 in
Transport Height146 in
Transport Length575 in
Width w/ Outriggers Extended313 in
Upper Structure Tail Swing Radius154 in
Carrier/Base Length371 in

Transmission

Transmission specifications
Max Speed - Forward18.6 mph
Max Speed - Reverse18.6 mph
Number of Forward Gears3
Number of Reverse Gears3
Transmission Typehydrostatic

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,800 in
Min Height @ Max Raise Angle480 in
Max Elevating Angle80 °
Number of Sections5
Swing Speed2 rpm
Min Operating Radius120 in
Max Operating Radius960 in
Height1,800 in
