Link Belt
Terex
A600

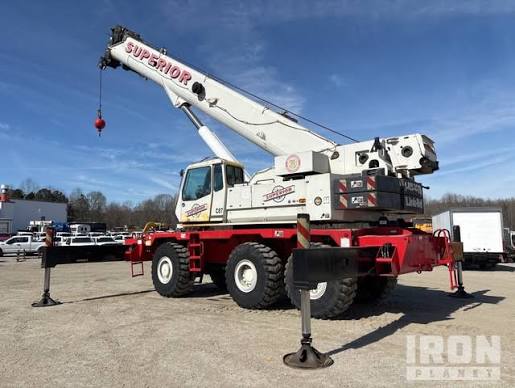

Rough Terrain Crane
31 specifications
1 / 5
Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 126,560 lb |
|---|---|
| Fuel Capacity | 95.0 gal |
| Tire Size | 23.5x25 - 2 star radial |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 255.0 gal |
| Alternator Supplied Amperage | 130 A |
| Engine Oil Capacity | 7.1 gal |
Engine
| Engine Model | Series 40 |
|---|---|
| Displacement | 530 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 330.0 hp |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 1,050 lb-ft |
Dimensions
| Transport Width | 144 in |
|---|---|
| Transport Height | 156 in |
| Transport Length | 575 in |
| Width w/ Outriggers Extended | 313 in |
| Upper Structure Tail Swing Radius | 154 in |
| Carrier/Base Length | 371 in |
Transmission
| Max Speed - Forward | 18.6 mph |
|---|---|
| Transmission Type | hydrostatic |
Boom
| Max Height @ Max Raise Angle - no jib | 1,914 in |
|---|---|
| Min Height @ Max Raise Angle | 600 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 5 |
| Swing Speed | 2 rpm |
| Min Operating Radius | 120 in |
| Max Operating Radius | 960 in |
| Height | 2,814 in |
