Link Belt

RTC-8040

Rough Terrain Crane

Operating Weight
38,799 lb
Max Lift Capacity
60,000 lb
Max Speed - Forward
25.7 mph
Gross Power
156.0 hp
All rough terrain cranes

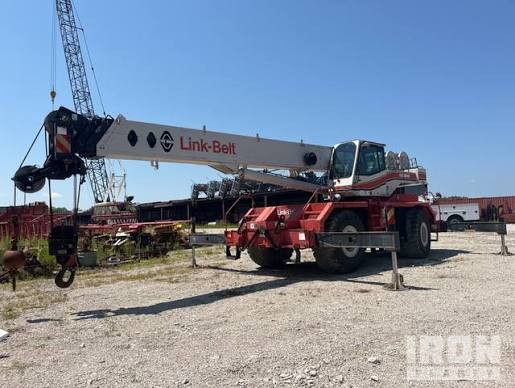

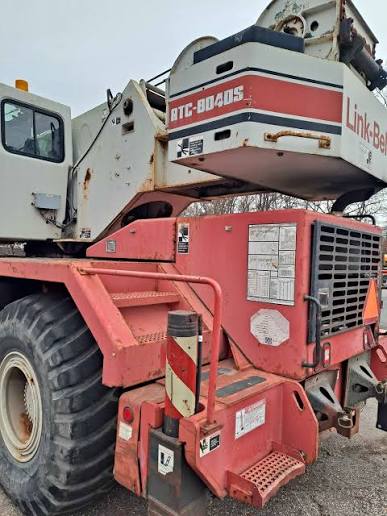

Link Belt RTC-8040 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,799 lb
Fuel Capacity75.0 gal
Tire Size23.5x25-20 ply
Operating Voltage12 V
Hydraulic System Fluid Capacity80.1 gal
Alternator Supplied Amperage130 A
Engine Oil Capacity4.4 gal

Engine

Engine specifications
Engine ModelC6.6
Displacement359 in³
Power Measured @2,500 rpm
Gross Power156.0 hp
Max Torque414 lb-ft

Dimensions

Dimensions specifications
Ground Clearance26 in
Wheelbase13 in
Transport Width131 in
Transport Height144 in
Transport Length498 in
Width w/ Outriggers Extended271 in
Upper Structure Tail Swing Radius135 in
Carrier/Base Length308 in

Transmission

Transmission specifications
Max Speed - Forward25.7 mph
Max Speed - Reverse18.4 mph
Number of Forward Gears8
Number of Reverse Gears2
Transmission Typepowershift

Boom

Boom specifications
Max Lift Capacity60,000 lb
Max Height @ Max Raise Angle - no jib1,260 in
Min Height @ Max Raise Angle395 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed3 rpm
Min Operating Radius120 in
Max Operating Radius1,140 in
