Link Belt
Grove
RT625

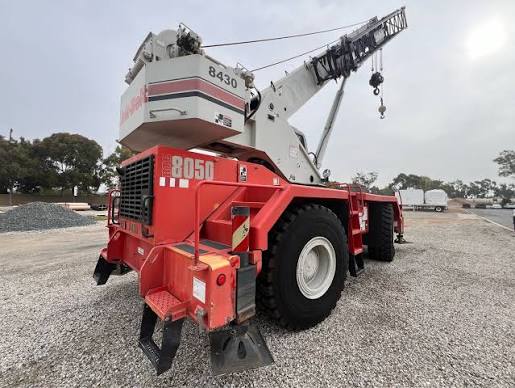

Rough Terrain Crane
38 specifications
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 74,660 lb |
|---|---|
| Fuel Capacity | 75.0 gal |
| Tire Size | 23.5x25 |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 131.1 gal |
| Alternator Supplied Amperage | 160 A |
| Engine Oil Capacity | 4.6 gal |
| DEF tank capacity | 5.0 gal |
Engine
| Engine Model | C6.6 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 195.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 590 lb-ft |
| Engine Make | Cummins QSB |
| Bore | 4 in |
| Stroke | 5 in |
| Emissions compliance | Tier 4F / Stage IV |
| Crankcase capacity | 3.8 gal |
Dimensions
| Ground Clearance | 11 in |
|---|---|
| Wheelbase | 151 in |
| Transport Width | 115 in |
| Transport Height | 144 in |
| Transport Length | 526 in |
| Width w/ Outriggers Extended | 271 in |
| Upper Structure Tail Swing Radius | 155 in |
| Carrier/Base Length | 307,481 in |
Transmission
| Max Speed - Forward | 19.6 mph |
|---|---|
| Max Speed - Reverse | 4.0 mph |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | Full automatic |
Boom
| Max Height @ Max Raise Angle - no jib | 1,422 in |
|---|---|
| Min Height @ Max Raise Angle | 516 in |
| Max Elevating Angle | 78 ° |
| Number of Sections | 4 |
| Swing Speed | 3 rpm |
| Min Operating Radius | 120 in |
| Max Operating Radius | 1,200 in |
