Liugong

CLG418

Motor Grader

All motor graders

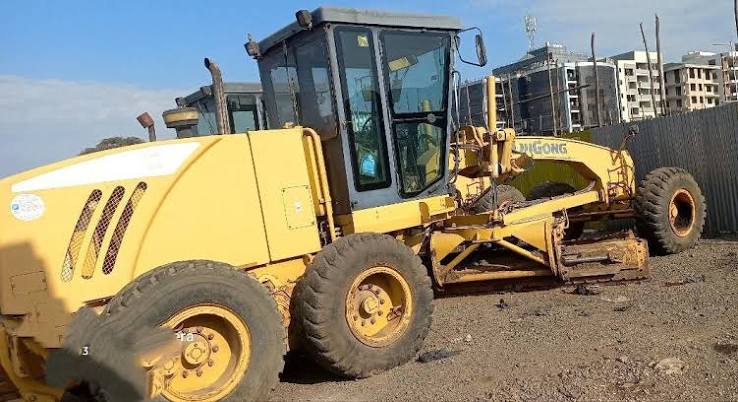

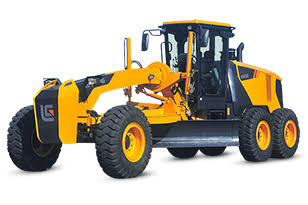

Liugong CLG418 Motor Grader
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total34,172 lb

Engine

Engine specifications
Engine Model6CTA-8.3
Displacement507 in³
Power Measured @2,200 rpm
Number of Cylinders6
Net Power Gear 1-2193.2 hp

Dimensions

Dimensions specifications
Overall Length344 in
Width Over Tires103 in
Height to Top of Isomount Cab135 in

Transmission

Transmission specifications
Max Speed - Forward25.1 mph
Max Speed - Reverse16.3 mph
Number of Gears - Forward6
Number of Gears - Reverse3
Transmission TypePowershift

Moldboard

Moldboard specifications
Moldboard Height26 in
Moldboard Width156 in
Moldboard Thickness1 in

Circle

Circle specifications
Max Lift Above Ground27 in
Max Reach Outside Tires - Left105 in
Max Reach Outside Tires - Right107 in
Blade Tip Angle - Front40 °
Blade Tip Angle - Rear70 °

Front Axle

Front Axle specifications
Wheel Lean17 °
Oscillation - Total30 °

Steering System

Steering System specifications
Turning Radius325 in
Articulation Angle20 °
