Liugong

CLG835 II

Wheel Loader

Operating Weight
25,574 lb
Bucket Capacity - heaped
2.30 yd³
Net Power
130.0 hp
All wheel loaders

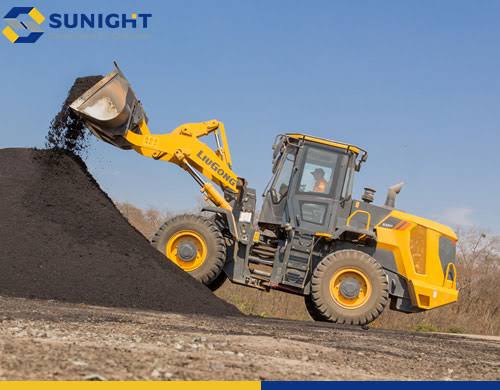

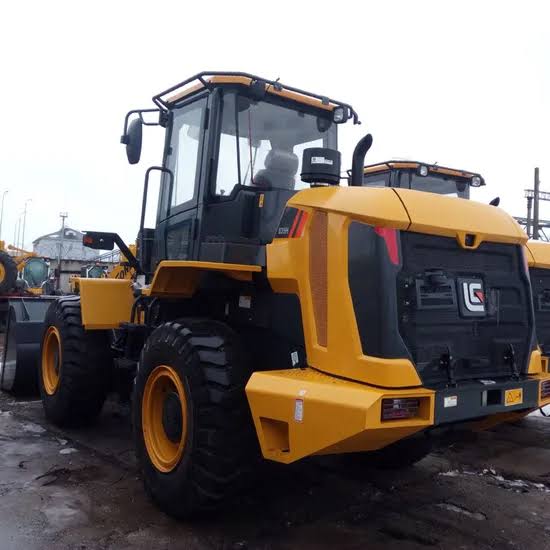

Liugong CLG835 II Wheel Loader
1 / 5
Image 1 of 5
Image: evangelchina.en.made-in-china.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,574 lb
Fuel Capacity52.9 gal
Tire Size17.5-25
Hydraulic System Fluid Capacity39.7 gal
Static Tipping Weight14,551 lb
Turning Radius196 in
Engine Oil Fluid Capacity3.2 gal
Front Axle/Diff Fluid Capacity7.4 gal
Rear Axle/Diff Fluid Capacity7.4 gal
Transmission Fluid Capacity10.6 gal

Engine

Engine specifications
Engine ModelQSB5.9-C130
Displacement360 in³
Power Measured @2,200 rpm
Net Power130.0 hp
Number of Cylinders6
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Raise Time4.8 s
Lower Time2.9 s
Dump Time1.1 s
Relief Valve Setting2,321 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab128 in
Wheelbase110 in
Width Over Tires91 in
Reach at Max Lift and Dump43 in
Length with Bucket on Ground274 in
Hinge Pin - Max Height148 in

Transmission

Transmission specifications
Max Speed - Forward23.0 mph
Max Speed - Reverse14.3 mph
Transmission Typecounter shaft type powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.30 yd³
Dump Clearance at Max Raise115 in
Breakout Force21,020 lb
Bucket Width97 in
