Liugong

CLG904C

Mini Excavator

Operating Weight
8,819 lb
Max Digging Depth
122 in
Net Power
36.4 hp
All mini excavators

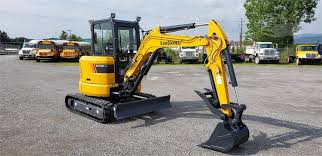

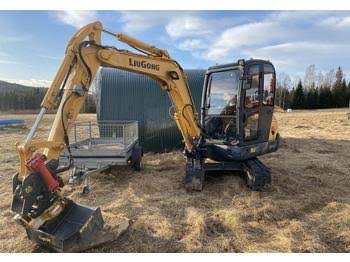

Liugong CLG904C Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,819 lb
Hydraulic Pump Flow Capacity31.8 gal/min
Hydraulic System Relief Valve Pressure3,046 psi

Engine

Engine specifications
Engine Model4TNV88-SYY
Displacement134 in³
Power Measured @2,200 rpm
Net Power36.4 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance13 in
Length of Track on Ground65 in
Tail Swing Radius57 in
Width to Outside of Tracks60 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.3 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth122 in
Max Reach Along Ground206 in
Max Vertical Wall Digging Depth86 in
Max Loading Height143 in
Shipping Length of Unit203 in
Shipping Height of Unit100 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
