Massey Ferguson

8650

Tractor

Operating Weight
24,249 lb
Displacement
513 in³
Power Measured @
2,200 rpm
Gross Power
240.0 hp
All tractors

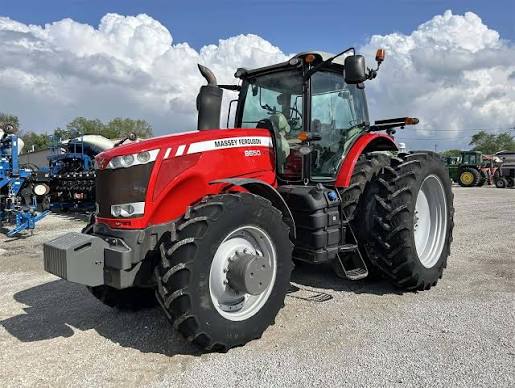

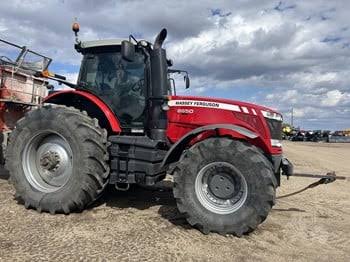

Massey Ferguson 8650 Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,249 lb
Fuel Capacity155.9 gal
3 Point Hitch Lift Capacity @ 24 inches26,460 lb
Operating Voltage12 V
DEF tank capacity8.0 gal

Engine

Engine specifications
Displacement513 in³
Power Measured @2,200 rpm
Gross Power240.0 hp
Number of Cylinders6
Torque Measured @1,500 rpm
Max Torque874 lb-ft
Engine MakeMassey Ferguson
PTO Power205.0 hp
Bore4 in
Stroke6 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity26.4 gal/min
Number of Remote Control Valves4
Hydraulic System TypeClosed center load sensing
Maximum operating pressure2,901 psi

Dimensions

Dimensions specifications
Wheelbase122 in
Overall Length223 in
Height - Top of ROPS/FOPS133 in

Transmission

Transmission specifications
Transmission TypeContinuously-variable transmission

Production

Production specifications
Series8600 Series
Years Manufactured2,009 – 2,013
