Massey Ferguson

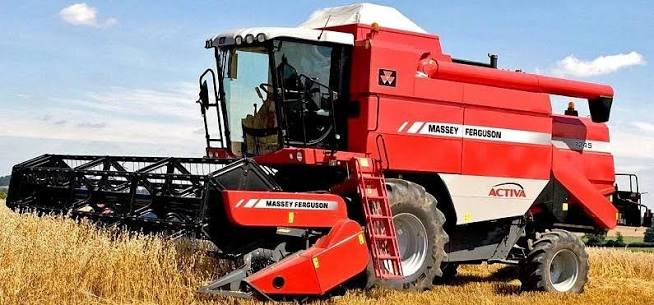

ACTIVA 7246
- Operating Weight w/o Attachment
- 28,550 lb
- Fuel Capacity
- 118.9 gal
- Displacement
- 354 in³
- Power
- 255.0 hp
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight w/o Attachment | 28,550 lb |
|---|---|
| Fuel Capacity | 118.9 gal |
| Transmission Type | hydrostatic |
| Number of Gears | 3 |
Engine
| Engine Model | NEF |
|---|---|
| Displacement | 354 in³ |
| Power | 255.0 hp |
Dimensions
| Overall Length | 330 in |
|---|---|
| Width Over Tires | 141 in |
Cleaning System
| Total Cleaning Area | 8,649 in³ |
|---|---|
| Cleaning Fan Speed - High | 1,050 rpm |
| Cleaning Fan Speed - Low | 350 rpm |
Grain Handling
| Grain Tank Capacity | 1,981.9 gal |
|---|---|
| Unloading Speed | 2.5 bu/sec |
| Unloading Discharge Height | 167 in |
| Unloading Auger Length | 158 in |
Separating
| Separating Area | 10,556 in³ |
|---|---|
| Separator Type | 6 straw walkers |
Threshing
| Rotor Diameter | 24 in |
|---|---|
| Rotor Length | 63 in |
| Rotor Speed - High | 1,310 rpm |
| Rotor Speed - Low | 430 rpm |
| Concave Area | 1,535 in³ |
