Massey Ferguson

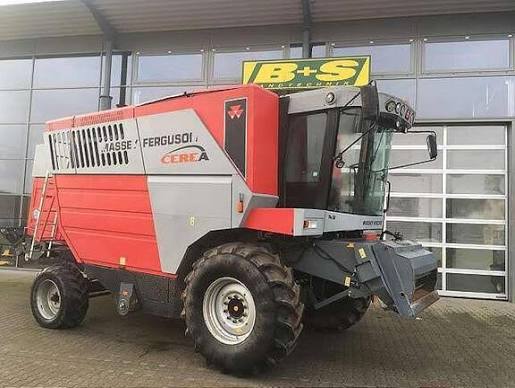

MF 7274 CEREA
- Operating Weight w/o Attachment
- 30,424 lb
- Fuel Capacity
- 198.2 gal
- Displacement
- 513 in³
- Power
- 340.0 hp
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight w/o Attachment | 30,424 lb |
|---|---|
| Fuel Capacity | 198.2 gal |
| Transmission Type | hydrostatic |
| Number of Gears | 4 |
Engine
| Engine Model | 645 DSBAEL |
|---|---|
| Displacement | 513 in³ |
| Aspiration | turbocharged/intercooler |
| Power | 340.0 hp |
Dimensions
| Overall Length | 395 in |
|---|---|
| Width Over Tires | 151 in |
| Height to Top of Isomount Cab | 158 in |
Cleaning System
| Total Cleaning Area | 8,215 in³ |
|---|---|
| Cleaning Fan Speed - High | 1,100 rpm |
| Cleaning Fan Speed - Low | 450 rpm |
Grain Handling
| Grain Tank Capacity | 2,509.8 gal |
|---|---|
| Unloading Speed | 2.5 bu/sec |
| Unloading Discharge Height | 166 in |
Separating
| Separating Area | 15,345 in³ |
|---|---|
| Separator Type | 8 straw walkers |
Threshing
| Rotor Diameter | 24 in |
|---|---|
| Rotor Length | 66 in |
| Rotor Speed - High | 1,080 rpm |
| Rotor Speed - Low | 370 rpm |
| Concave Area | 1,643 in³ |
