Massey Ferguson

MF 7278 CEREA

Combine

Operating Weight w/o Attachment
30,600 lb
Fuel Capacity
198.2 gal
Displacement
513 in³
Power
387.0 hp
All combines/harvesters

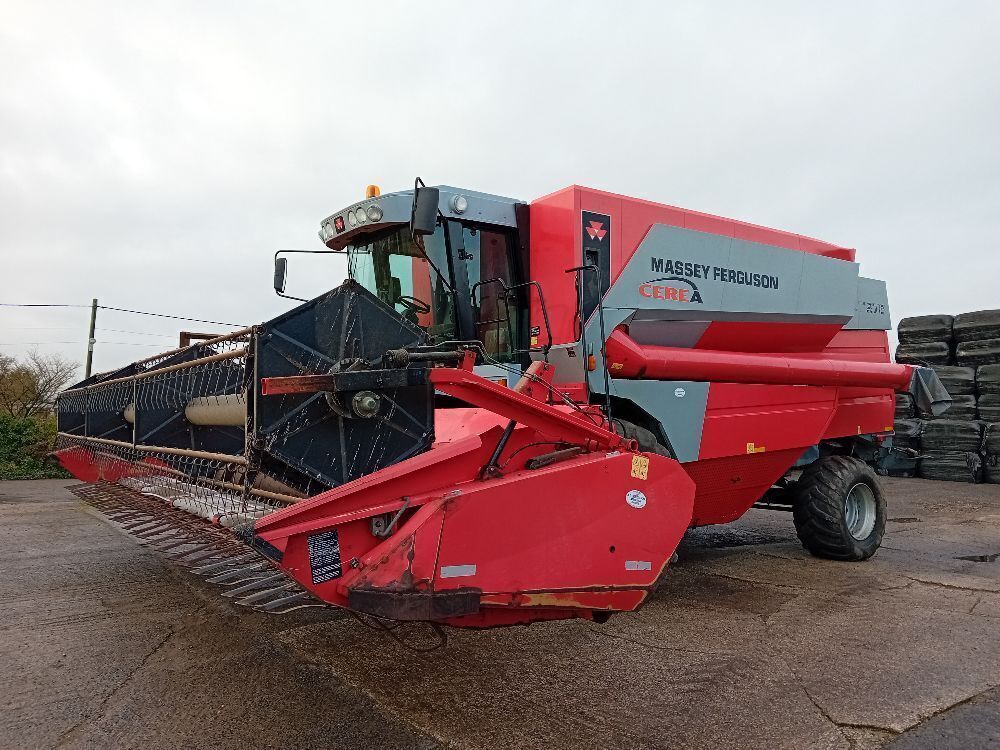

Massey Ferguson MF 7278 CEREA Combine
1 / 5
Image 1 of 5
Image: ylcauctions.co.uk

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment30,600 lb
Fuel Capacity198.2 gal
Transmission Typehydrostatic
Number of Gears4

Engine

Engine specifications
Engine Model645 DSBAEL
Displacement513 in³
Aspirationturbocharged/intercooler
Power387.0 hp

Dimensions

Dimensions specifications
Overall Length421 in
Width Over Tires151 in
Height to Top of Isomount Cab158 in

Cleaning System

Cleaning System specifications
Total Cleaning Area8,215 in³
Cleaning Fan Speed - High1,100 rpm
Cleaning Fan Speed - Low450 rpm

Grain Handling

Grain Handling specifications
Grain Tank Capacity2,774.1 gal
Unloading Speed2.8 bu/sec
Unloading Discharge Height166 in

Separating

Separating specifications
Separating Area15,345 in³
Separator Type8 straw walkers rotary separator

Threshing

Threshing specifications
Rotor Diameter24 in
Rotor Length66 in
Rotor Speed - High1,080 rpm
Rotor Speed - Low370 rpm
Concave Area1,643 in³
