Mecalac

AS 50

Wheel Loader

Operating Weight
9,171 lb
Net Power
40.0 hp
All wheel loaders

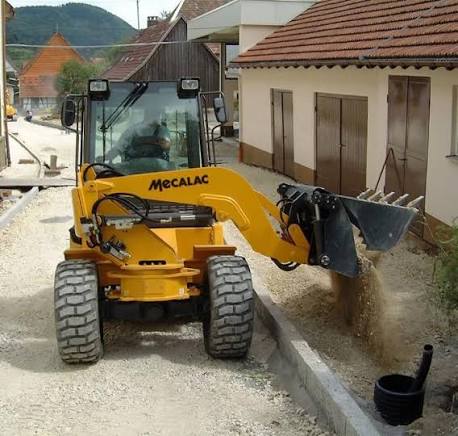

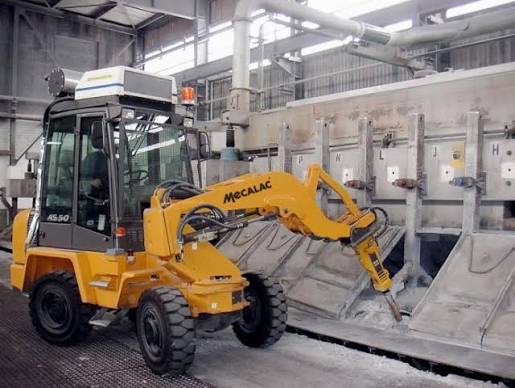

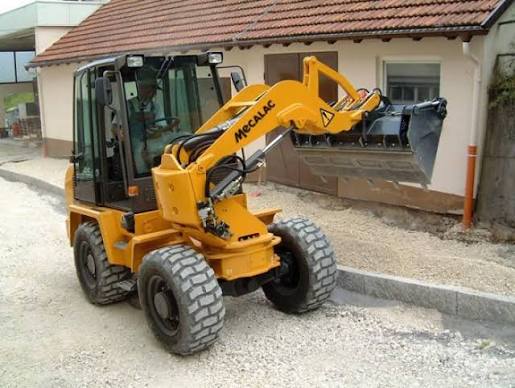

Mecalac AS 50 Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,171 lb
Fuel Capacity11.9 gal
Tire Size125-18
Hydraulic System Fluid Capacity18.5 gal
Operating Voltage12 V
Engine Oil Fluid Capacity1.6 gal
Rear Axle Oscillation10 °
Front Axle/Diff Fluid Capacity1.9 gal
Rear Axle/Diff Fluid Capacity2.0 gal
Steering Angle35 °

Engine

Engine specifications
Engine ModelD 2011 L03i
Power Measured @2,500 rpm
Net Power40.0 hp
Alternator60 A
Battery66 Ah

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab101 in
Length with Bucket on Ground192 in
Turning Radius109 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph

Bucket

Bucket specifications
Breakout Force—
Tipping load Standard bucket5,313 lb
Dumping angle, top46 °
Lifting force2400 newton
Payload on forks, max. turned, frontal3,616 lb
Thrust force2500 newton
Payload on forks, max. turned, max. swivelled2,844 lb
Tilting angle45 °
Tipping load Standard bucket, max. turned, 904,553 lb
