Michigan

55C-I

Wheel Loader

Operating Weight
24,868 lb
Bucket Capacity - heaped
2.11 yd³
Net Power
120.0 hp
All wheel loaders
Michigan 55C-I Wheel Loader
1 / 5

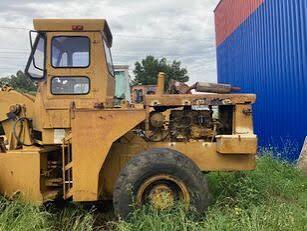

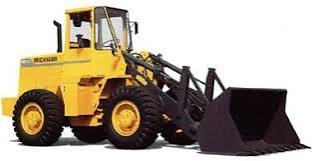

Image 1 of 5
Image: volvoce.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,868 lb
Fuel Capacity41.0 gal
Tire Size17.5-25
Hydraulic System Fluid Capacity41.0 gal
Static Tipping Weight16,956 lb
Operating Voltage24 V
Turning Radius236 in
Engine Oil Fluid Capacity3.7 gal
Front Axle/Diff Fluid Capacity3.0 gal
Rear Axle/Diff Fluid Capacity3.0 gal
Cooling System Fluid Capacity6.7 gal
Transmission Fluid Capacity6.9 gal

Engine

Engine specifications
Engine ModelOM 366
Displacement234 in³
Power Measured @2,500 rpm
Net Power120.0 hp
Number of Cylinders6
Aspirationnatural
Torque Measured @1,600 rpm

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab122 in
Wheelbase104 in
Width Over Tires93 in
Reach at Max Lift and Dump36 in
Length with Bucket on Ground260 in
Hinge Pin - Max Height145 in

Transmission

Transmission specifications
Max Speed - Forward18.7 mph
Max Speed - Reverse18.7 mph
Transmission Typeclark

Bucket

Bucket specifications
Bucket Capacity - heaped2.11 yd³
Bucket Capacity - struck1.80 yd³
Dump Clearance at Max Raise113 in
Breakout Force20,051 lb
Bucket Width97 in
