Mitsubishi

MG460 VHP

Motor Grader

Max Power
185.1 hp
Net Power Gears 7-8
8.1 hp
All motor graders

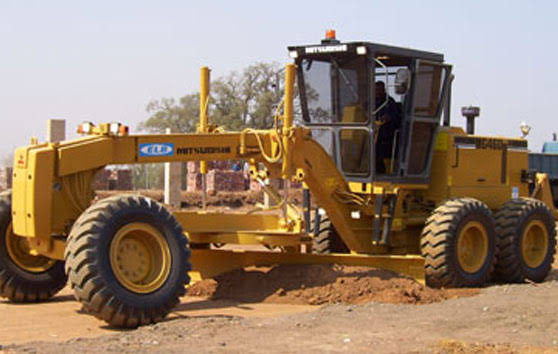

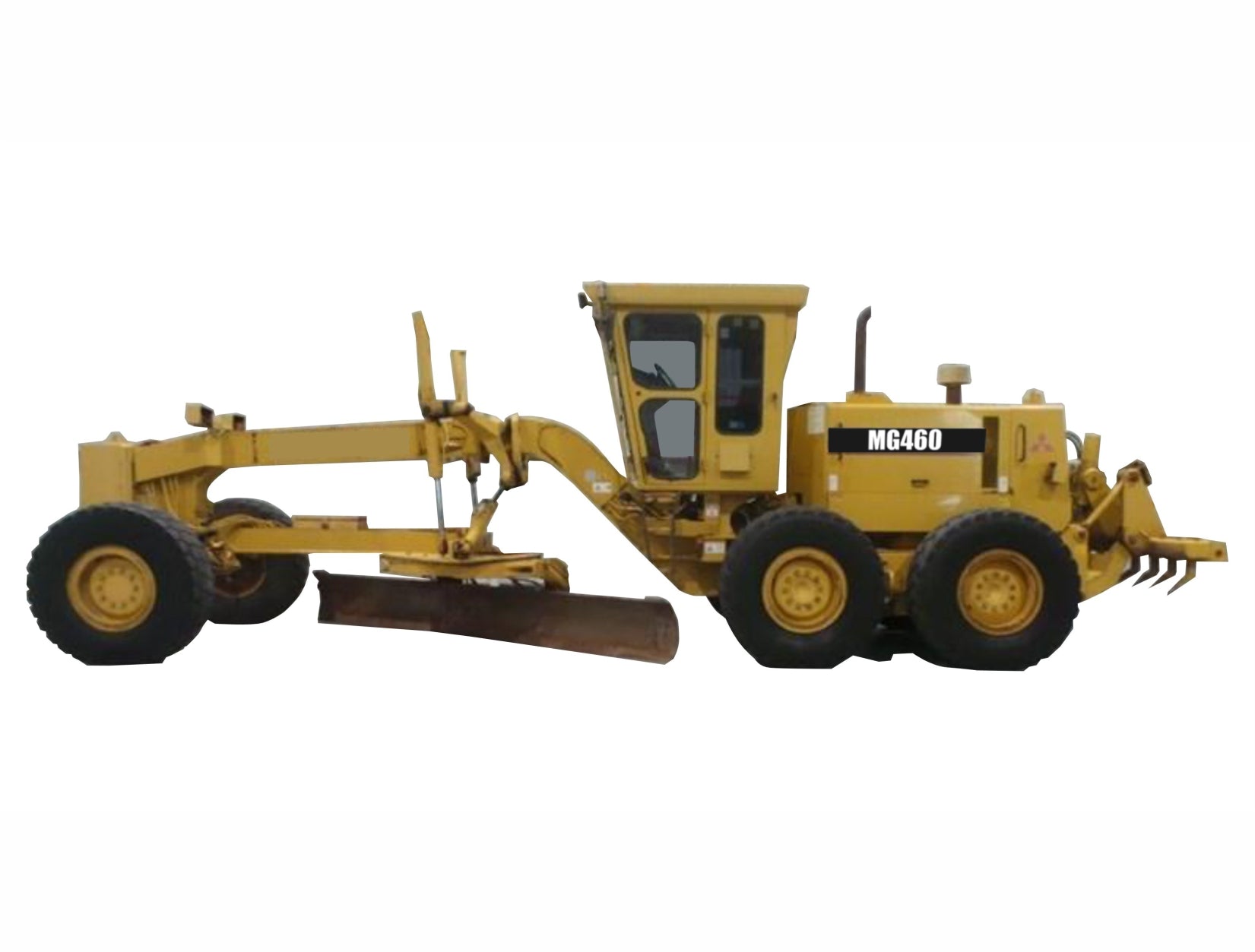

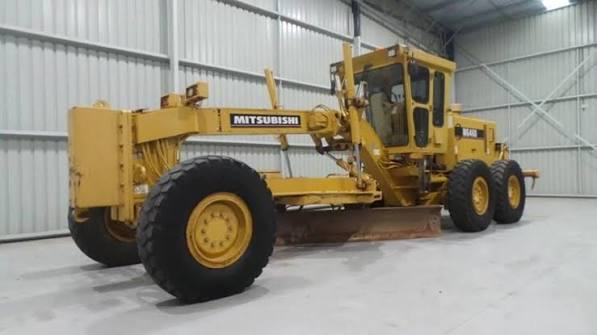

Mitsubishi MG460 VHP Motor Grader
1 / 5
Image 1 of 5
Image: cabglass.co.za

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total39,022 lb

Engine

Engine specifications
Engine Model6D24-TUN
Displacement732 in³
Power Measured @2,000 rpm
Max Power185.1 hp
Net Power Gears 7-88.1 hp
Net Power Gear 1-2155.6 hp

Dimensions

Dimensions specifications
Overall Length339 in
Width Over Tires96 in
Height to Top of Isomount Cab135 in

Transmission

Transmission specifications
Max Speed - Forward24.9 mph
Max Speed - Reverse23.0 mph
Number of Gears - Forward8
Number of Gears - Reverse8
Transmission TypePowershift

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Width146 in
Moldboard Thickness1 in

Circle

Circle specifications
Max Lift Above Ground19 in
Max Reach Outside Tires - Left78 in
Max Reach Outside Tires - Right79 in
Blade Tip Angle - Front36 °
Blade Tip Angle - Rear81 °

Front Axle

Front Axle specifications
Wheel Lean20 °
Oscillation - Total30 °

Steering System

Steering System specifications
Turning Radius272 in
Articulation Angle29 °
