Mitsubishi

MG530

Motor Grader

Max Power
185.0 hp
Net Power Gear 5-6
185.0 hp
All motor graders
Mitsubishi MG530 Motor Grader
1 / 5

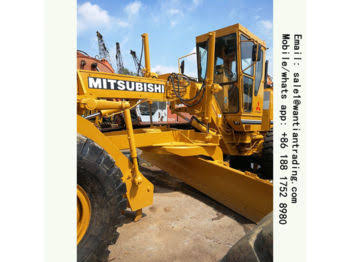

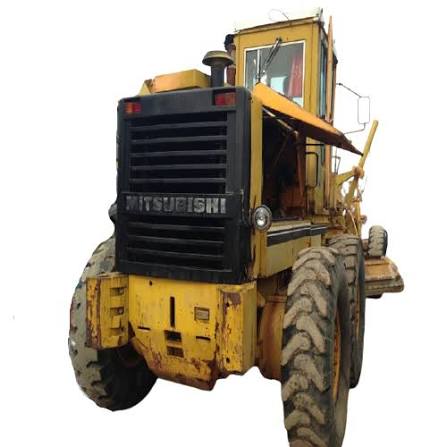

Image 1 of 5
Image: alibaba.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total31,383 lb
Tire Size14.00-24-12PR
Operating Voltage24 V

Engine

Engine specifications
Engine ModelC 6D22-T
Displacement680 in³
Power Measured @2,000 rpm
Max Power185.0 hp
Net Power Gear 5-6185.0 hp

Dimensions

Dimensions specifications
Wheelbase247 in
Overall Length335 in
Width Over Tires97 in
Height to Top of Isomount Cab122 in

Transmission

Transmission specifications
Max Speed - Forward29.0 mph
Max Speed - Reverse29.6 mph
Number of Gears - Forward6
Number of Gears - Reverse6
Transmission Typepower shift planetary gear hydraulically actuated

Moldboard

Moldboard specifications
Moldboard Height28 in
Moldboard Width158 in
Moldboard Thickness1 in

Steering System

Steering System specifications
Turning Radius272 in
