Moxy

MT36

Off-Highway Truck

Operating Weight
130,954 lb
Max Speed
31.7 mph
Gross Power
442.6 hp
All off-highway trucks

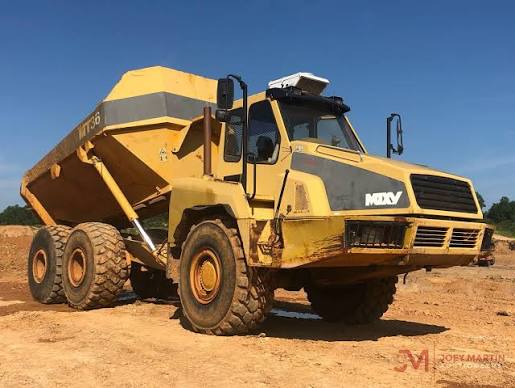

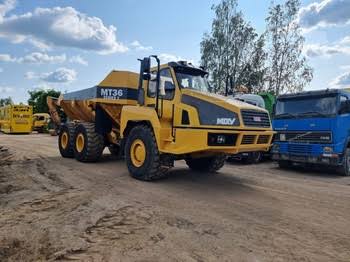

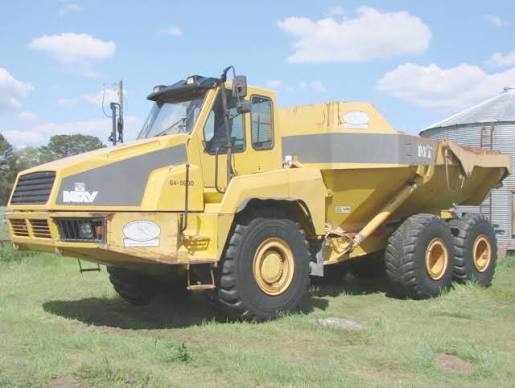

Moxy MT36 Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity112.3 gal
Tire Size26.5R25
Engine Oil Capacity3.5 gal
Cooling System Fluid Capacity13.3 gal
Hydraulic System Fluid Capacity66.1 gal
Operating Voltage24 V
Alternator Supplied Amperage100 A
Transmission Fluid Capacity14.6 gal

Engine

Engine specifications
Engine ModelDC 12
Displacement714 in³
Power Measured @2,200 rpm
Gross Power442.6 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,600 rpm
Max Torque1,140 lb-ft
MakeScania

Weights

Weights specifications
Operating Weight130,954 lb
Total Empty58,864 lb
Front Axle - empty29,542 lb
Total Loaded130,955 lb
Rear Axle - empty29,322 lb
Front Axle - loaded42,990 lb
Rear Axle - loaded87,965 lb

Dimensions

Dimensions specifications
Ground Clearance24 in
Wheelbase211 in
Overall Length411 in
Overall Width130 in
Overall Height254 in
Dump Height254 in
Dump Ground Clearance26 in

Transmission

Transmission specifications
Max Speed31.7 mph
Transmission TypeZF 6 WG 310 Dash 4 electronically-controlled automatic
Number of Forward Gears6
Number of Reverse Gears2

Drive System

Drive System specifications
Drive Config6X6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload72,091 lb
Dump Angle70 °
Raise Time12.0 s
Lower Time11.0 s
Capacity - Heaped27.49 yd³
Capacity - Struck21.01 yd³
