Mustang

MTL25

Compact Track Loader

Operating Weight
10,692 lb
Max Speed - high range
6.9 mph
Displacement
269 in³
Gross Power
96.6 hp
All compact track loaders

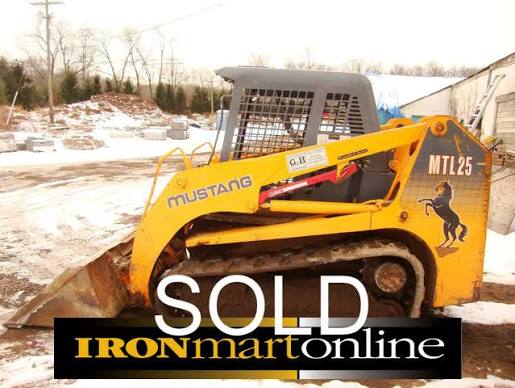

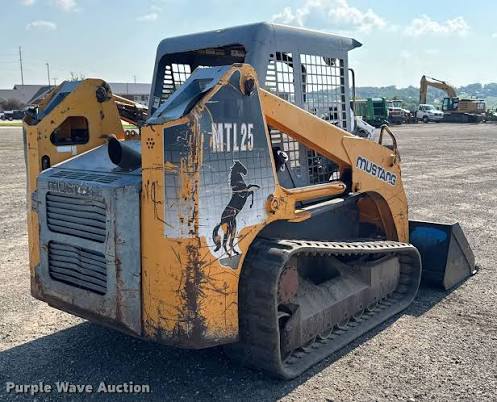

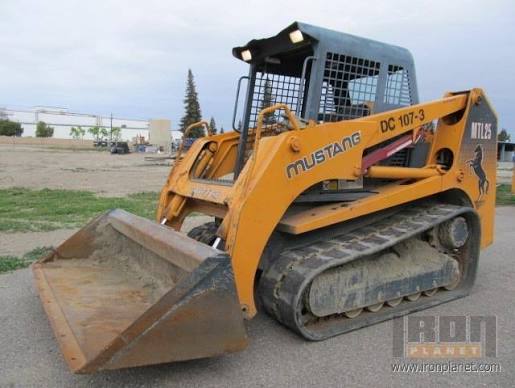

Mustang MTL25 Compact Track Loader
1 / 5
Image 1 of 5
Image: discount-equipment.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,692 lb
Max Speed - high range6.9 mph
Max Speed - low range5.0 mph
Fuel Capacity28.6 gal
Hydraulic System Fluid Capacity25.1 gal
Cooling System Fluid Capacity4.0 gal
Operating Voltage12 V
Alternator Supplied Amperage60 A
Engine Oil Capacity3.7 gal

Engine

Engine specifications
Engine Model4TNV106T
Displacement269 in³
Power Measured @2,200 rpm
Gross Power96.6 hp
Number of Cylinders4
Aspirationturbocharged
Torque Measured @1,400 rpm
Peak Torque291 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow23.6 gal/min
Relief Valve Pressure2,988 psi

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab88 in
Reach at Max Lift and Dump42 in
Width Over Tracks73 in
Length with Bucket159 in
Clearance at Max Lift and Dump94 in
Turning Radius from Center - inc bucket106 in
Turning Radius from Center - machine rear72 in
Length - without Bucket122 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Length of Track on Ground64 in
Width of Track18 in
Number of Track Rollers per Side5
Ground Contact Area1,132 in³
Track Gauge55 in

Loader

Loader specifications
Bucket Capacity0.90 yd³
Tipping Angle7,057 °
Operating Load3,527 lb
Breakout Force—
