Nagano

NS25

Mini Excavator

Operating Weight
6,217 lb
Max Digging Depth
103 in
Net Power
23.8 hp
All mini excavators

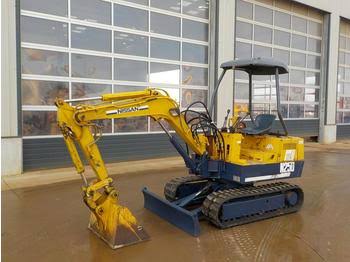

Nagano NS25 Mini Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,217 lb
Hydraulic Pump Flow Capacity14.8 gal/min

Engine

Engine specifications
Displacement81 in³
Power Measured @2,100 rpm
Net Power23.8 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Length of Track on Ground54 in
Tail Swing Radius54 in
Width to Outside of Tracks59 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.5 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth103 in
Max Reach Along Ground181 in
Max Vertical Wall Digging Depth74 in
Max Loading Height120 in
Shipping Length of Unit175 in
Shipping Height of Unit95 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
