Nagano

NS35R

Mini Excavator

Operating Weight
7,981 lb
Max Digging Depth
124 in
Net Power
26.7 hp
All mini excavators

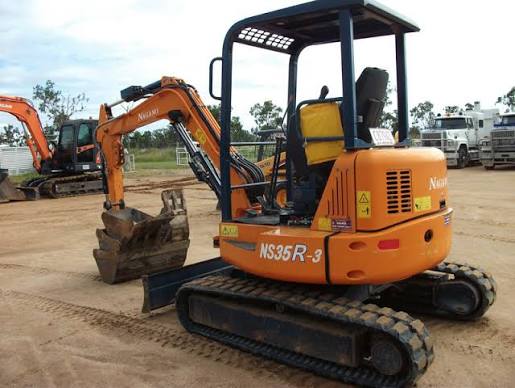

Nagano NS35R Mini Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,981 lb
Hydraulic Pump Flow Capacity17.8 gal/min

Engine

Engine specifications
Displacement81 in³
Power Measured @2,400 rpm
Net Power26.7 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Length of Track on Ground65 in
Tail Swing Radius36 in
Width to Outside of Tracks67 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.8 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth124 in
Max Reach Along Ground207 in
Max Vertical Wall Digging Depth86 in
Max Loading Height127 in
Shipping Length of Unit185 in
Shipping Height of Unit98 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
