New Holland

135SRL

Excavator

Operating Weight
32,408 lb
Max Digging Depth
217 in
Max Digging Depth
238 in
Net Power
85.0 hp
All excavators

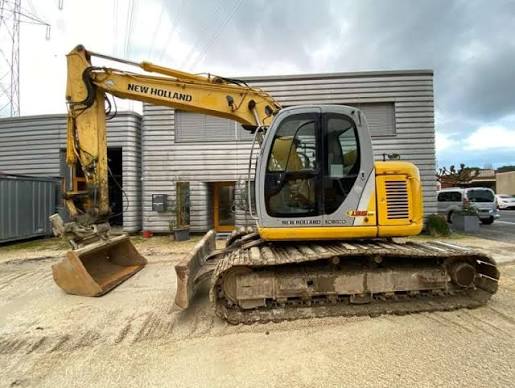

New Holland 135SRL Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight32,408 lb
Fuel Capacity44.4 gal
Hydraulic Pump Flow Capacity62.4 gal/min
Hydraulic System Fluid Capacity37.0 gal
Hydraulic System Relief Valve Pressure5,468 psi
Engine Oil Capacity3.5 gal
Cooling System Fluid Capacity4.8 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.5 gal
Alternator Supplied Amperage30 A

Engine

Engine specifications
Engine Model- 4BG1TA
Displacement264 in³
Power Measured @2,050 rpm
Net Power85.0 hp
AspirationTurbo

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab108 in
Length of Track on Ground120 in
Tail Swing Radius56 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Number of Track Rollers per Side6
Max Travel Speed3.2 mph
Shoe Size20 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth217 in
Max Reach Along Ground324 in
Max Loading Height245 in
Max Vertical Wall Digging Depth196 in
Max Cutting Height348 in
Shipping Length of Unit295 in
Shipping Height of Unit111 in

Bucket

Bucket specifications
Reference Bucket Capacity0.60 yd³
Maximum Bucket Capacity0.99 yd³
Minimum Bucket Capacity0.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth238 in
Max Vertical Wall Digging Depth207 in
Max Cutting Height349 in
Max Loading Height254 in
Max Reach Along Ground341 in
Shipping Length of Unit295 in
Shipping Height of Unit111 in
